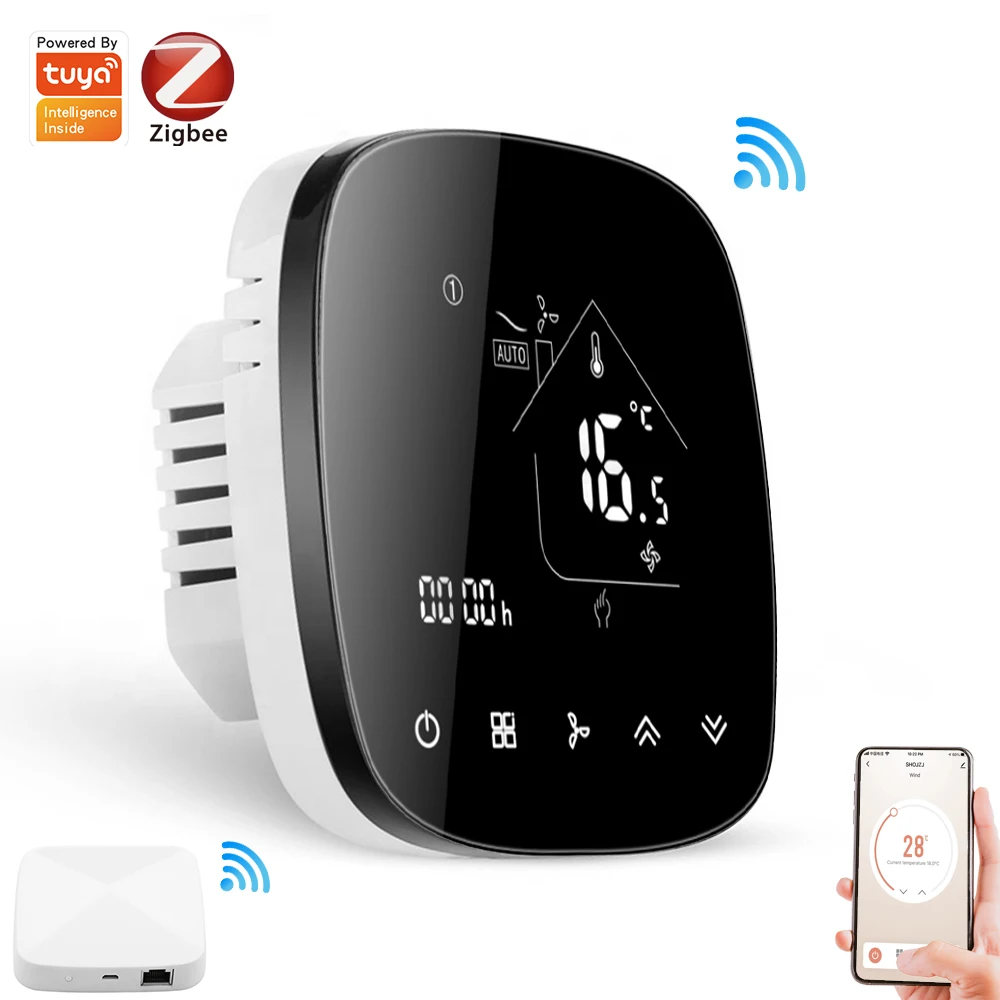

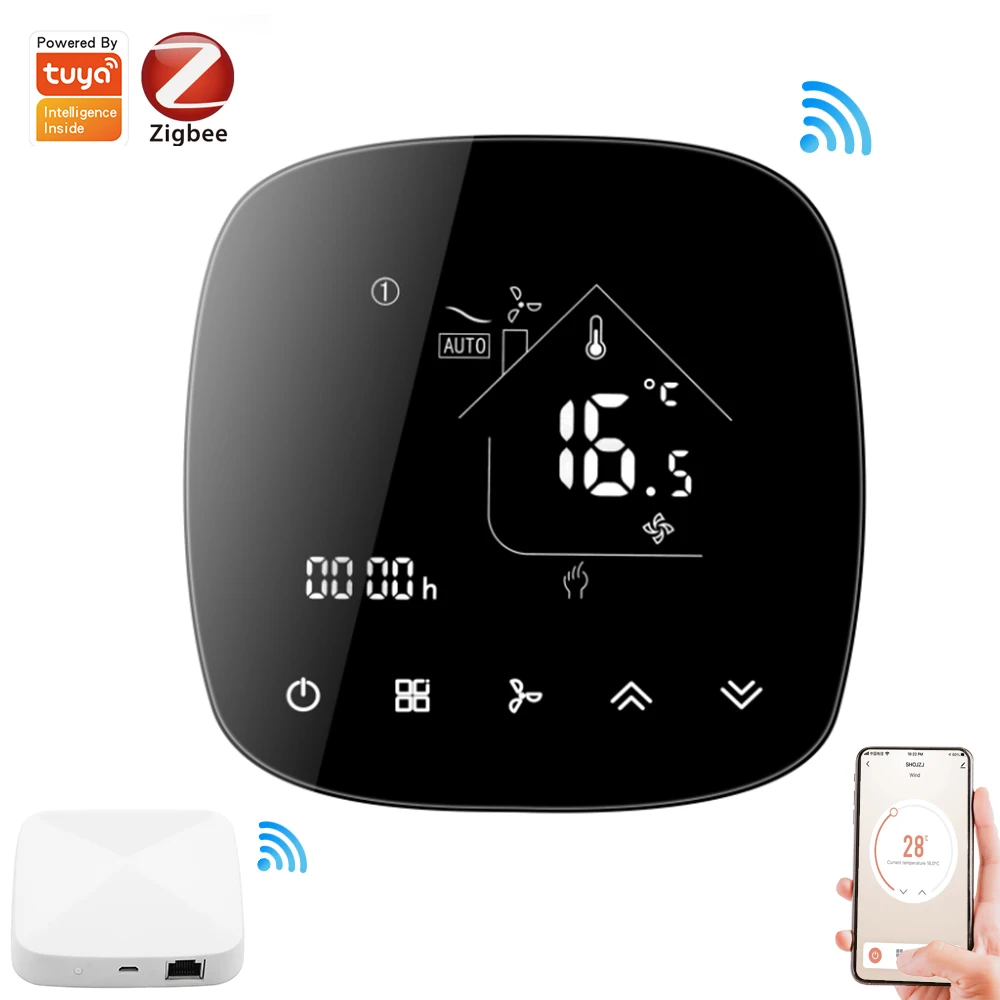

ZIGBEE TUYA 2MQTT WIFI Central Air Conditioner Thermostat Temperature Controller 2 Pipe 4 Pipe 3 Speed Fan Coil Unit Home Temperature Controller
Your new thermostat will provide uniform and comfortable
temperature control throughout every room in your property. We
bring together technology, craftsmanship and the highest quality
materials to provide you with a safe, reliable product combined with
sleek, contemporary design.
Please read this installation/ programming manual for comprehensive
instructions on installing and operating your thermostat. Please also
ensure a suitably qualified person installs your thermostat and

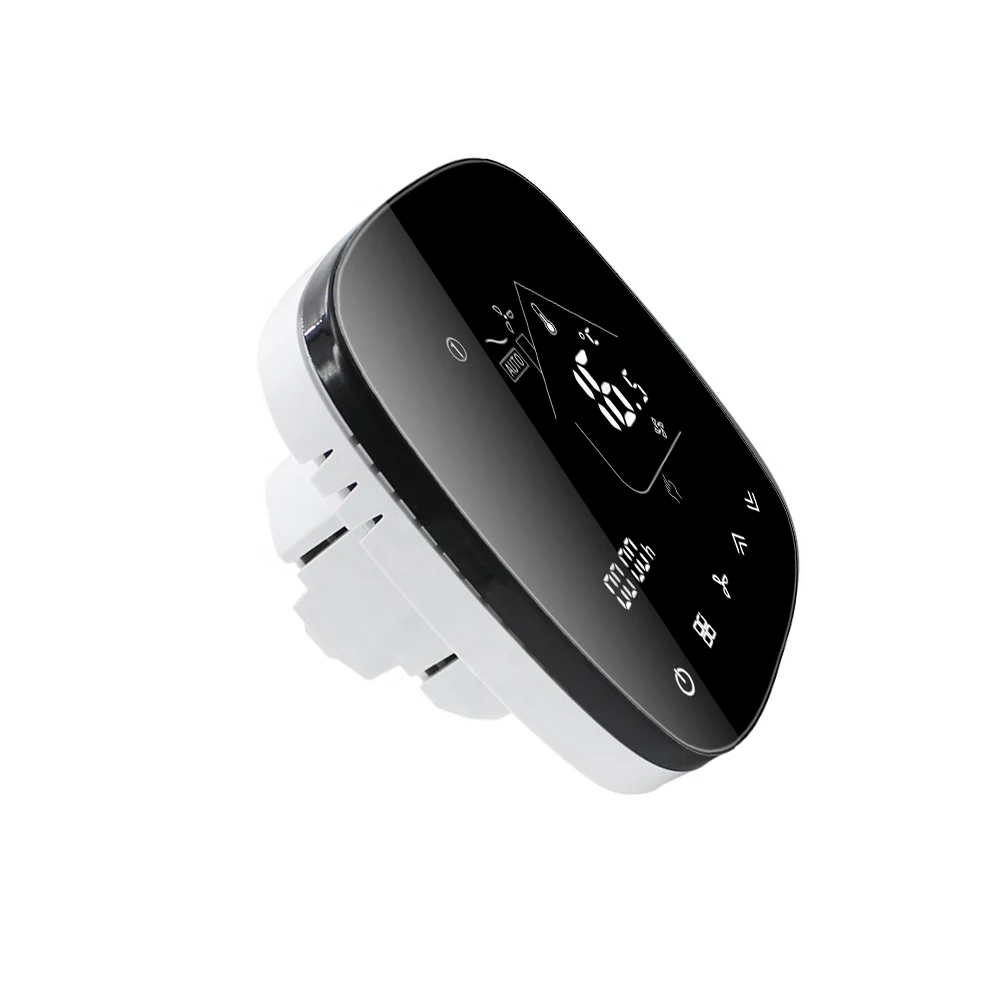

Modern Round T ouch Screen Room Thermostats
are designed to on/off control the fans and valves in air conditione
applications via comparison of the room temperature and setting
temp. as reaching the aim of comfort and saving energy.
TECHNICAL DATA
Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Accuracy: +0.5 C
Set Temp. Range: 5 -35 C
Dispaly Temp. Range: 5 ~ 99C
Ambient Temp::0~ 45 C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp:-5~45 C
Power Consumption: <1.5W
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)

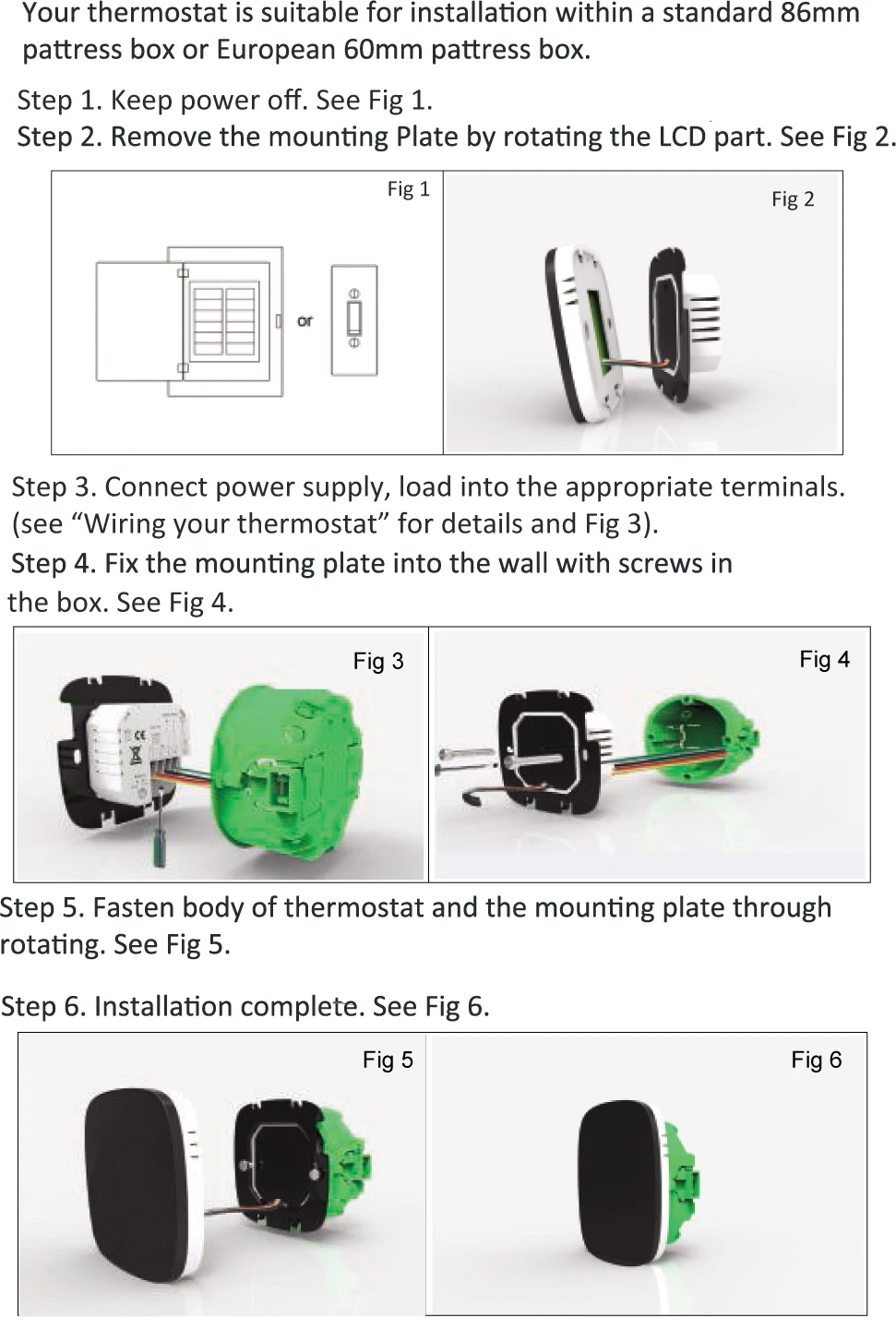

Installation Box: 86 * 86mm Square or European 60mm Round Box

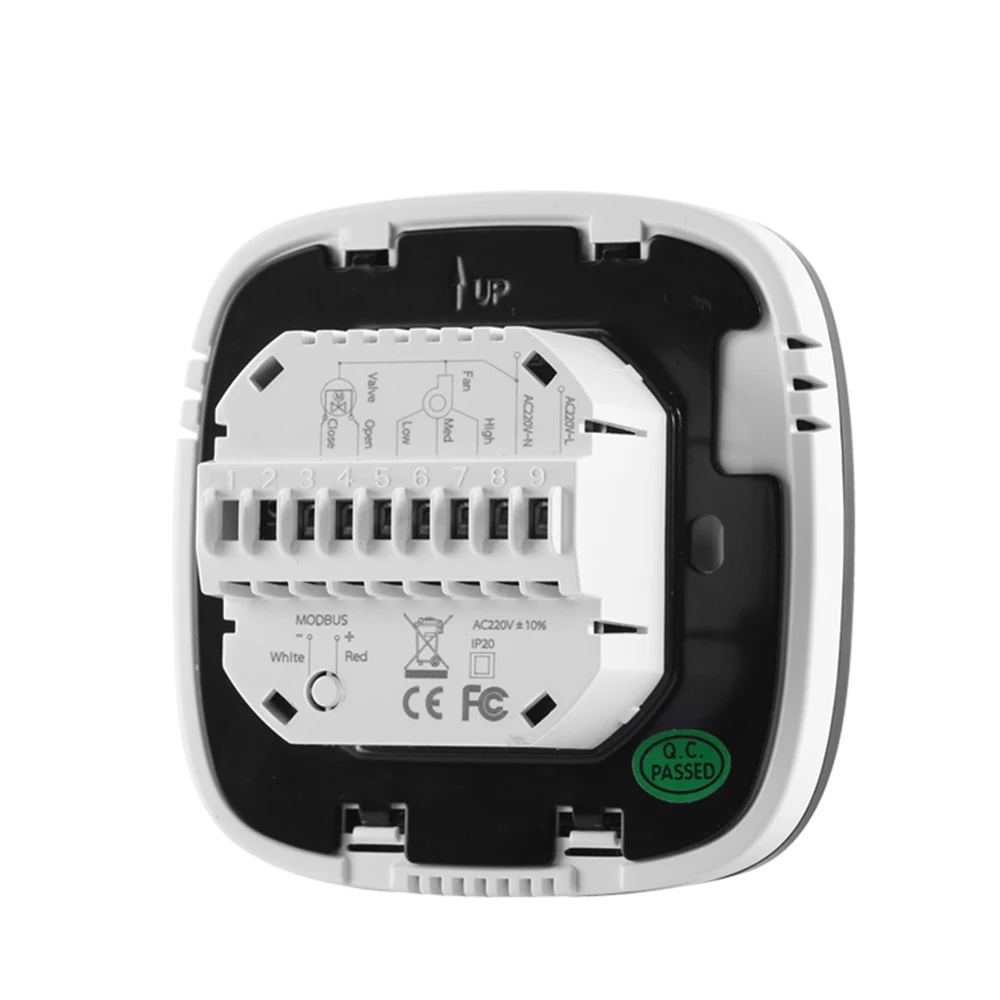

Wire Terminals: Wire 2x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP20
Buttons: Capacitive Touch Buttons
On Appearance
1.86mm hidden box and european 60mm round box is suitable.
2. White, black or gold housing creates your colorful life.
3. White backlight protect your eyes
4. Touch buttons to make simple operation.
5. Amazing Silver Frame opens your modern life.
On Functionality
1. Powerful functions are available such as Modbus/WIFI etc,.
2.0.5°C Accuracy keeps temperature within the level you set.
3. Data memory when power is off.
4.5+2 six periods programmable maximize comfort and economy.
5. Create thermostat group to centrally control.
6. Support Device Sharing.
. All setting languages synchronize your time zone, address and language
8. No limit to add room Support Smart Scene.

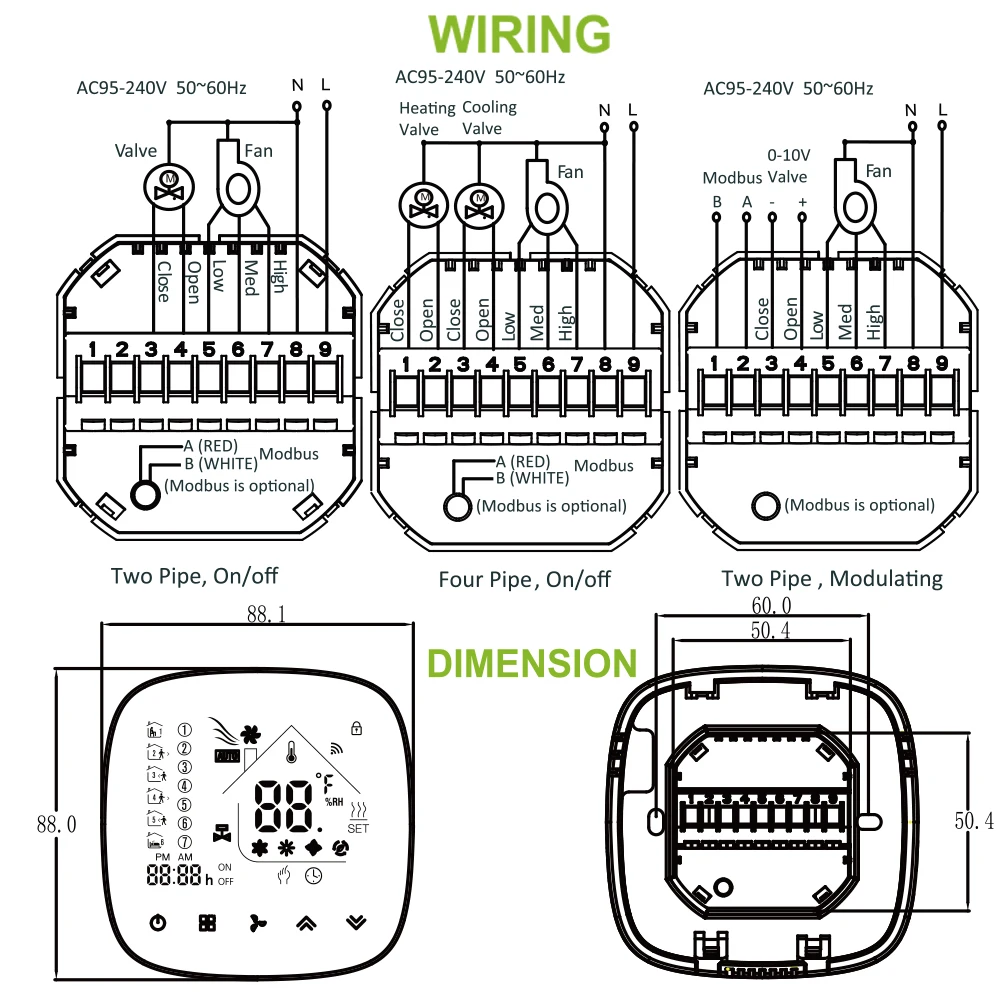

A: Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
M: Two pipe; Control Fan Coil Unit and 0- 10V Motorized Valve
E: Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and
Two Wired Cool Valve.
N : Modbus RTU communication
ZB : Zigbee
W : Wifi conne
tior
K : Keycard
T : Clock
W2 : Window
P : Programmable
E : External Sensor
