WiFi Thermostat Air Conditioner Temperature Humidity Controller USB Power LCD Touch Screen Google Home Alexa
Please note the difference in options.
【With WiFi or no wifi optional]
2P:Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve.
4P:Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.

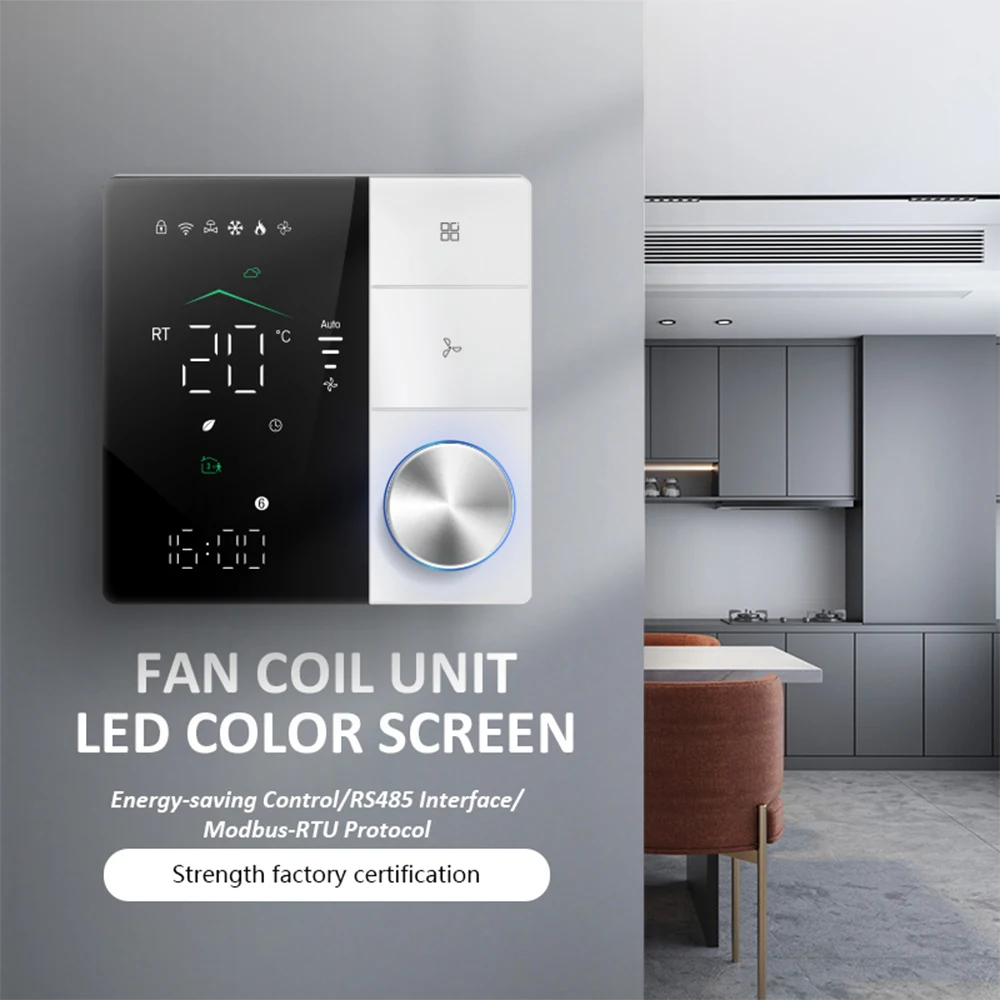

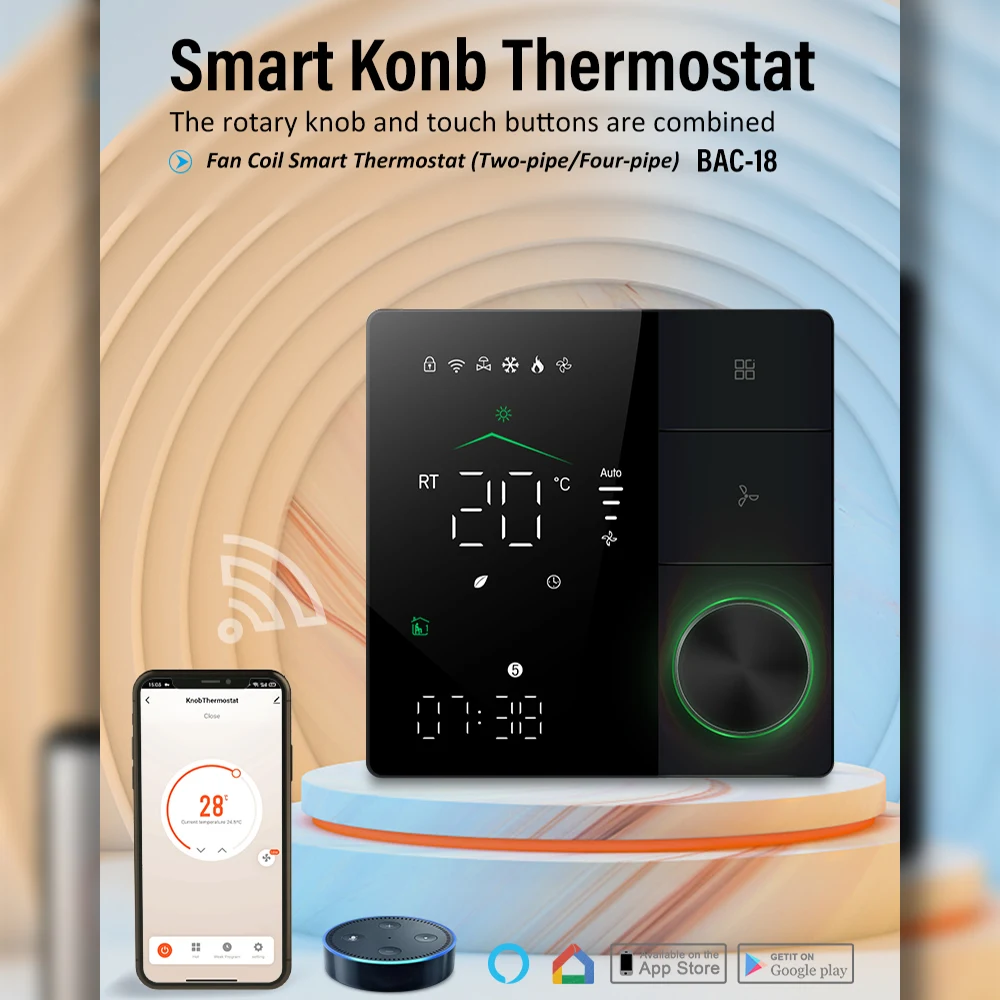

BAC-18 Smart Knob Thermostat are designed to on / off control FCU the fans and valves in air conditioner applications via comparison of the room temperature and setting temp. As reaching the aim of comfort and saving energy.

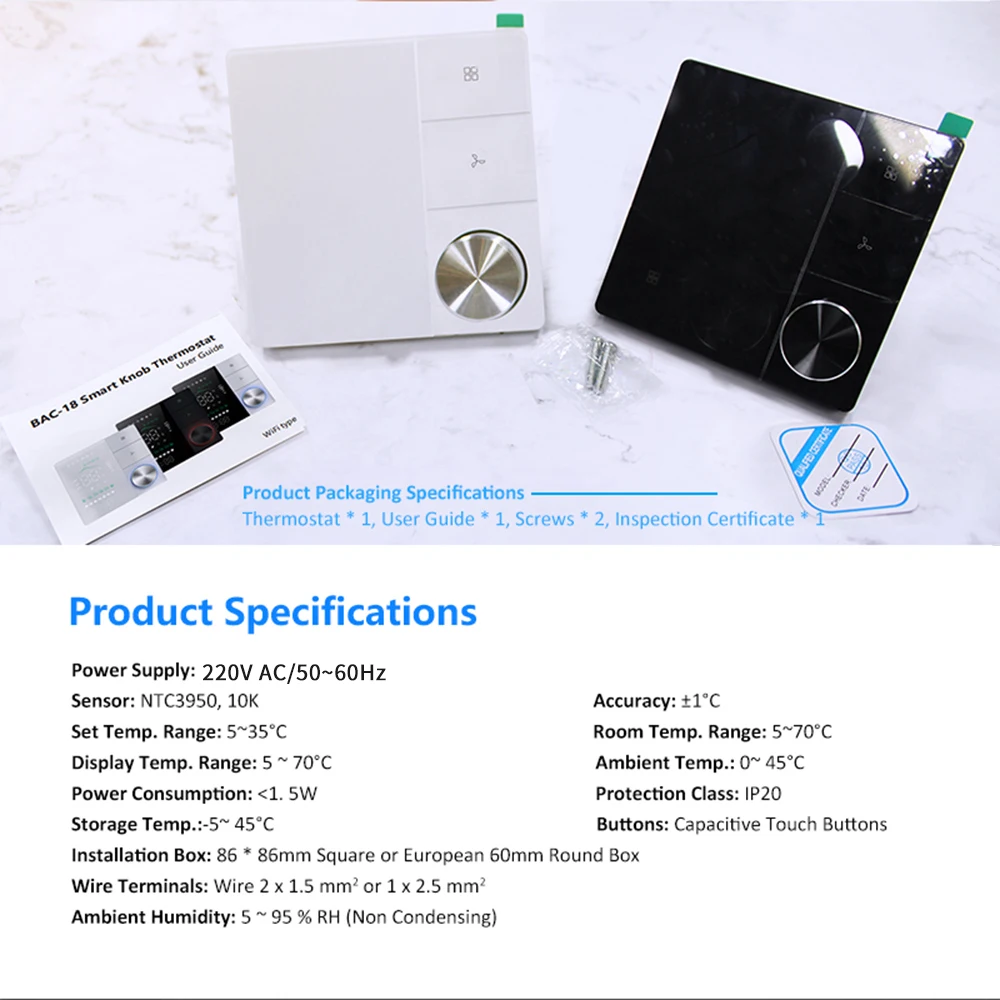

Specifications:
Power Supply: 220 VAC, 50~60Hz
Please check the information laser printed on the back of the thermostat for the actual voltage.
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Set Temp. Range: 5 -35 ℃
Accuracy: ±1 ℃
Dispaly Temp. Range: 5 ~ 70℃
Ambient Temp.:0~45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45 ℃ Timing Error: < 1%
Power Consumption: <1.5W
Shell Material: PC +ABS ( Fireproof)

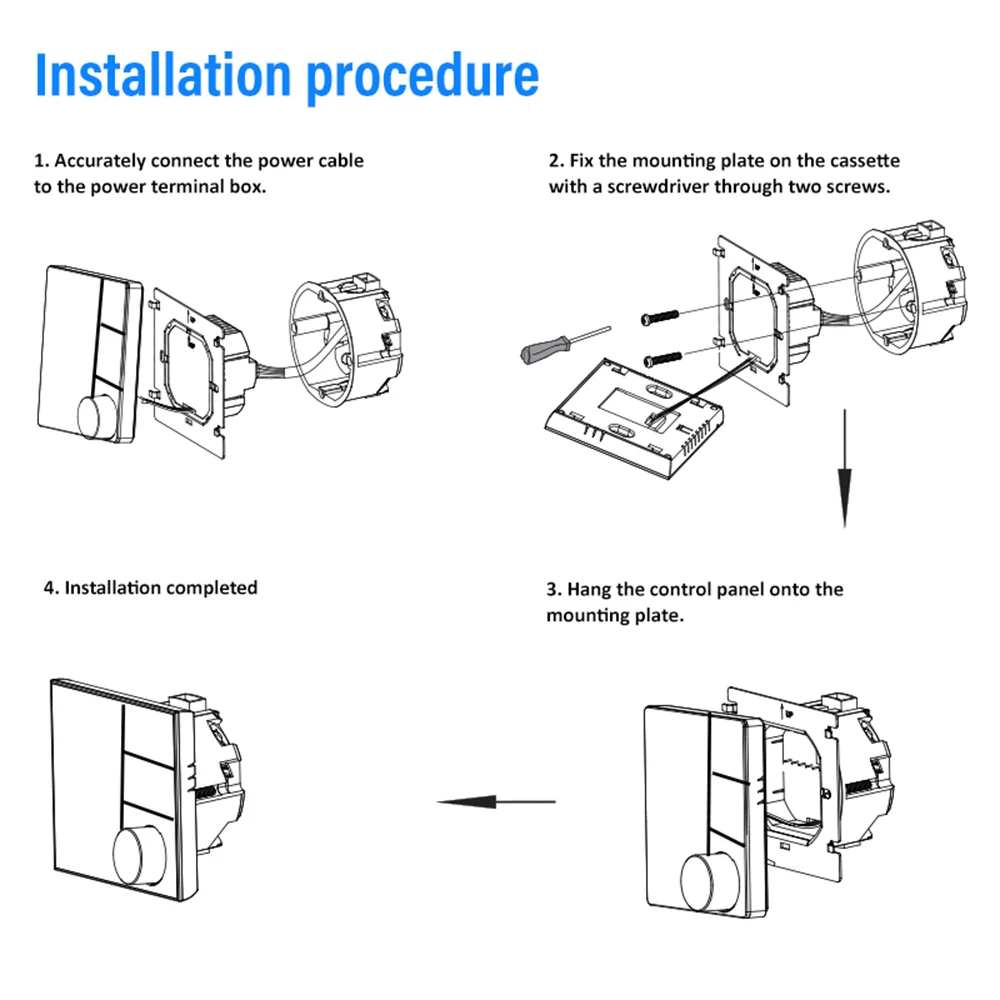

Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²
Protection Class: IP20
Buttons: Capactive Touch Buttons
On Appearance:

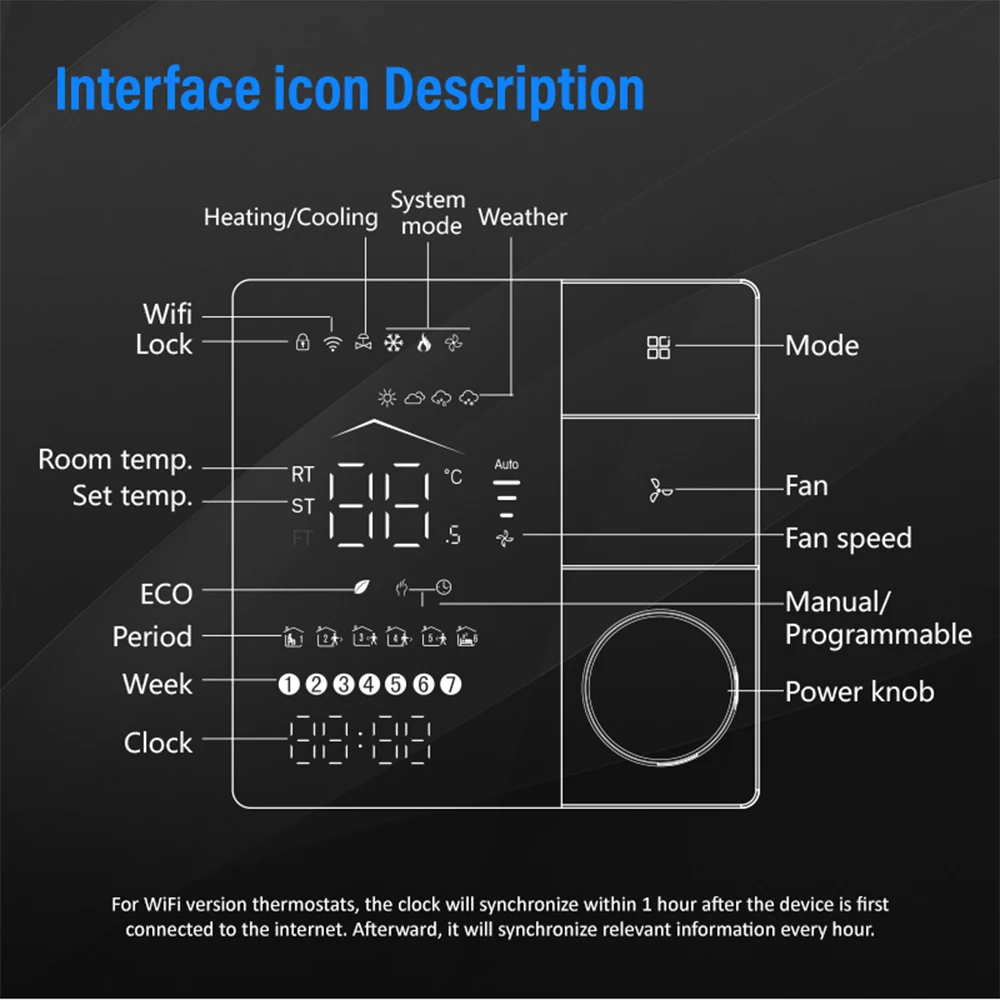

1. LED display, more friendly interface;. LED matrix light, simple display, energy
saving, protect your eyes.

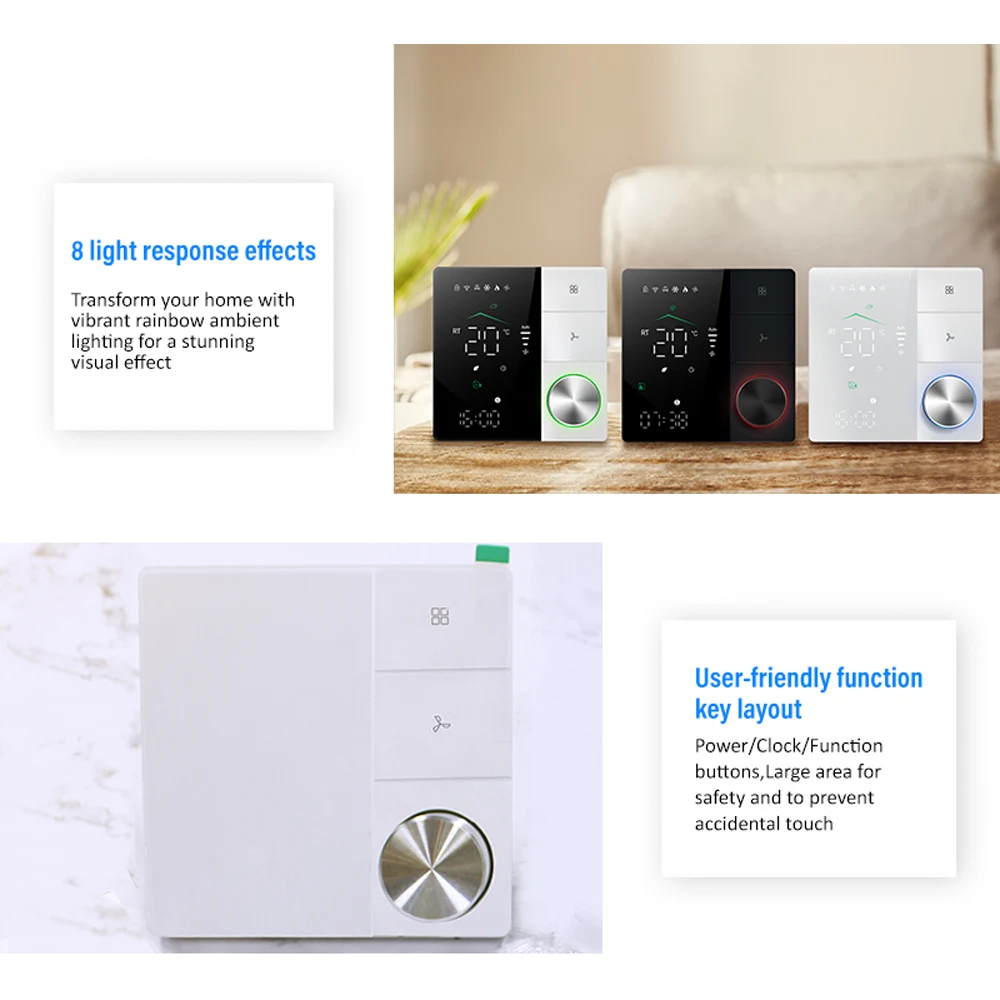

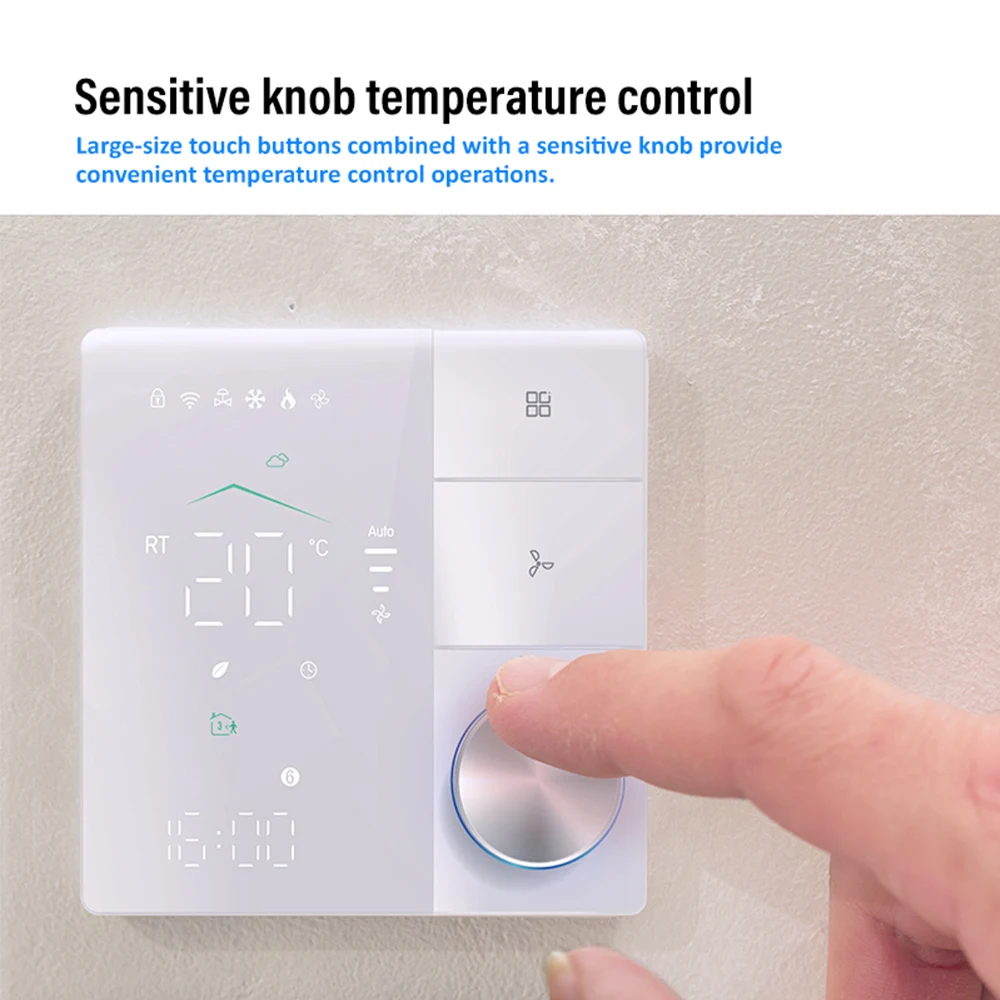

2. Touch buttons to make simple operation.

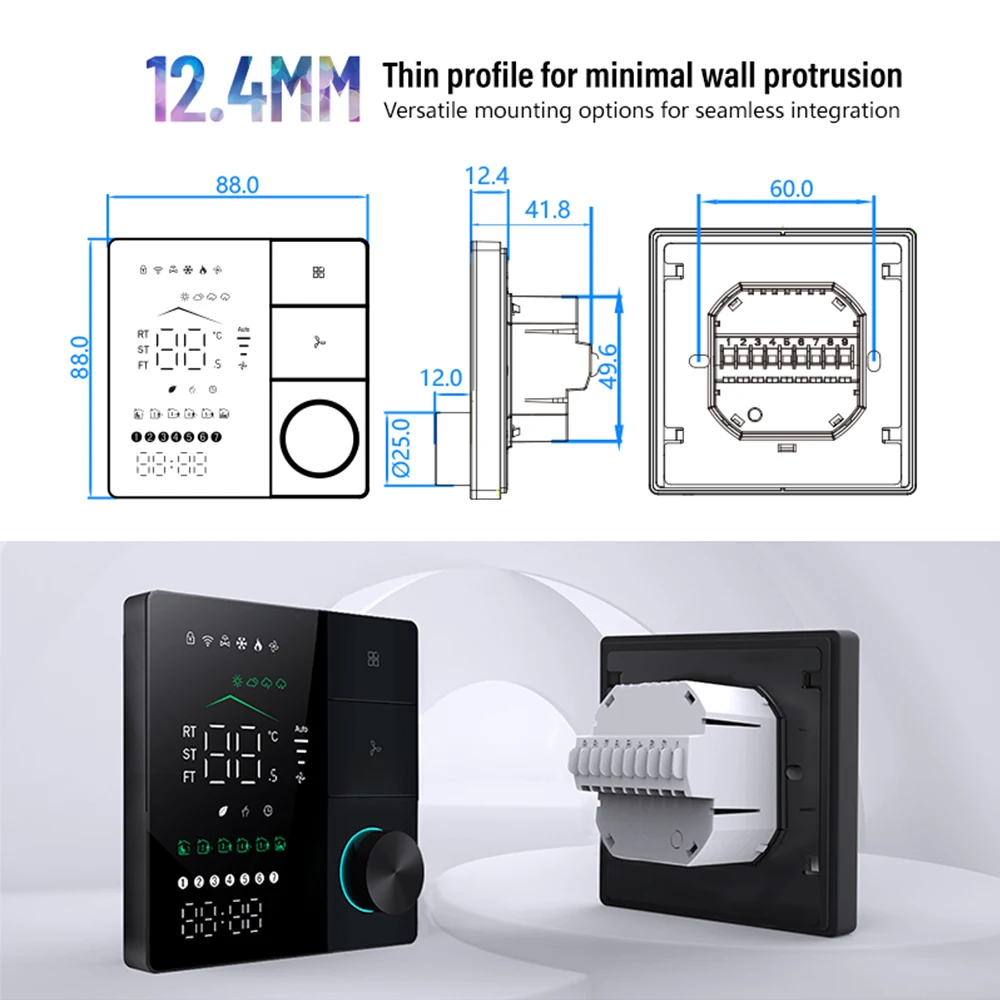

3. The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable thickenss above the wall is only 12.4mm.
4. Frameless acrylic panel design, simple and elegant;

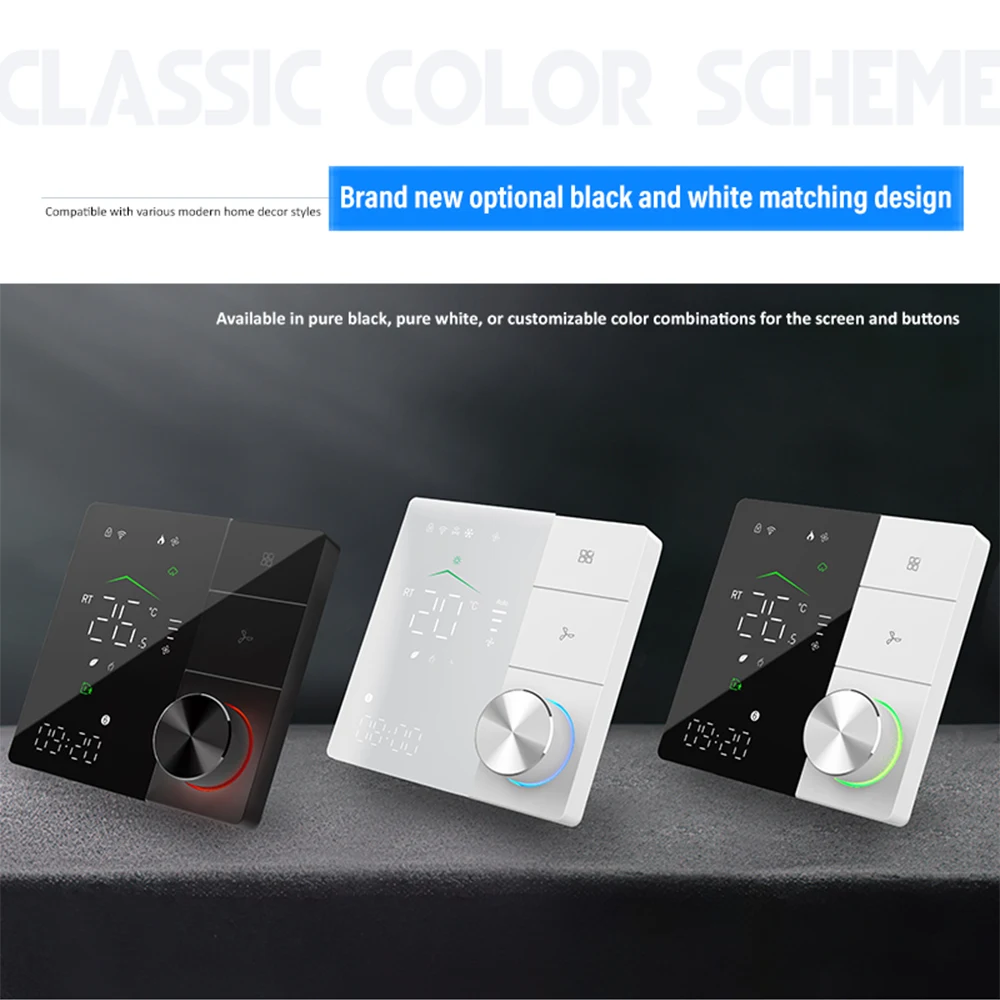

5. Classic black/white color scheme, seamlessly integrated.

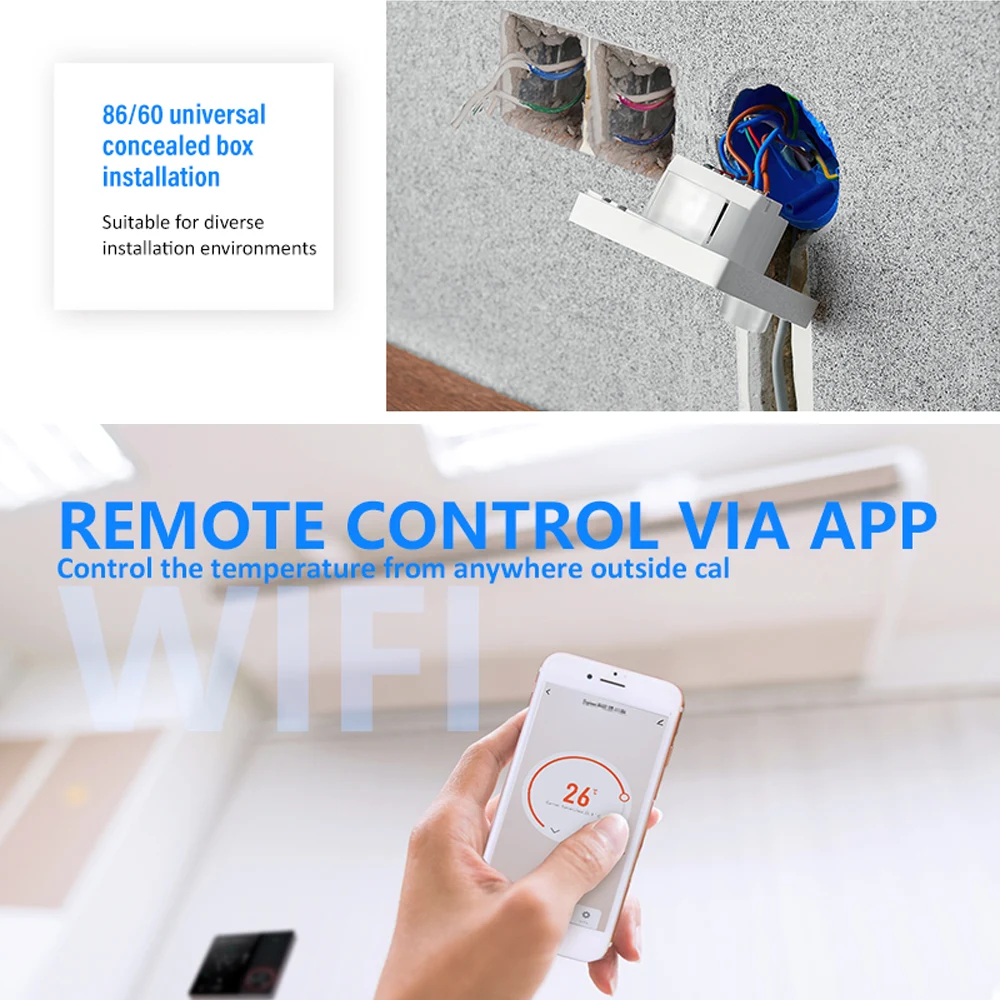

6. Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments;
7. Interlock to connect gives you easy installation.
On Functionality:
1. Smart Wifi thermostat APP remote control;
2. Strict temperature control accuracy (± 1°C) to provide the warmth you want;
3. Power off protection, save all your settings safely;
4. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time periods a day, green energy saving, Less cost, more intelligent and environmental protection;
5. Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control;
6. Perfect access: Tmall Genie, Amazon echo, Google Home, full experience new voice control method
