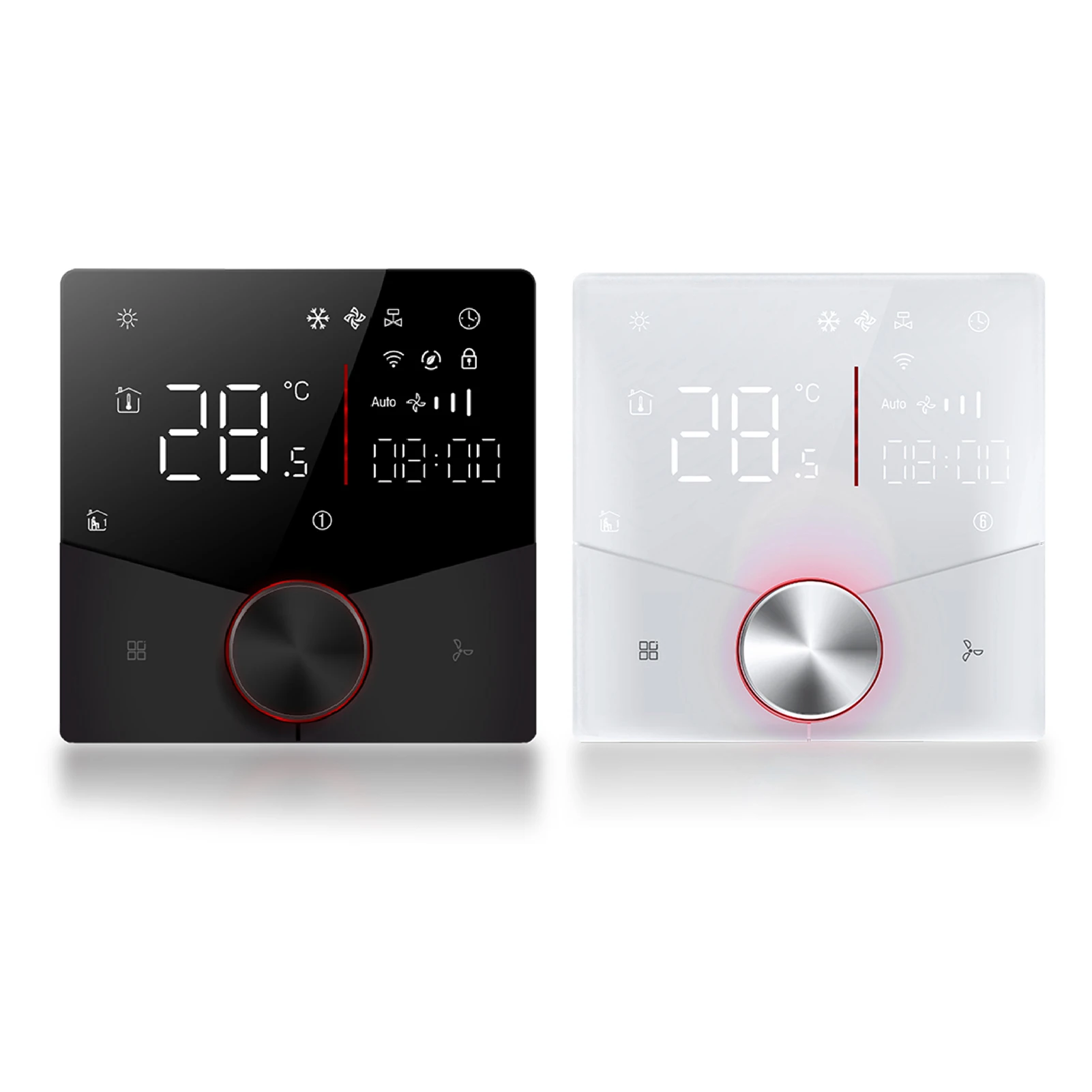

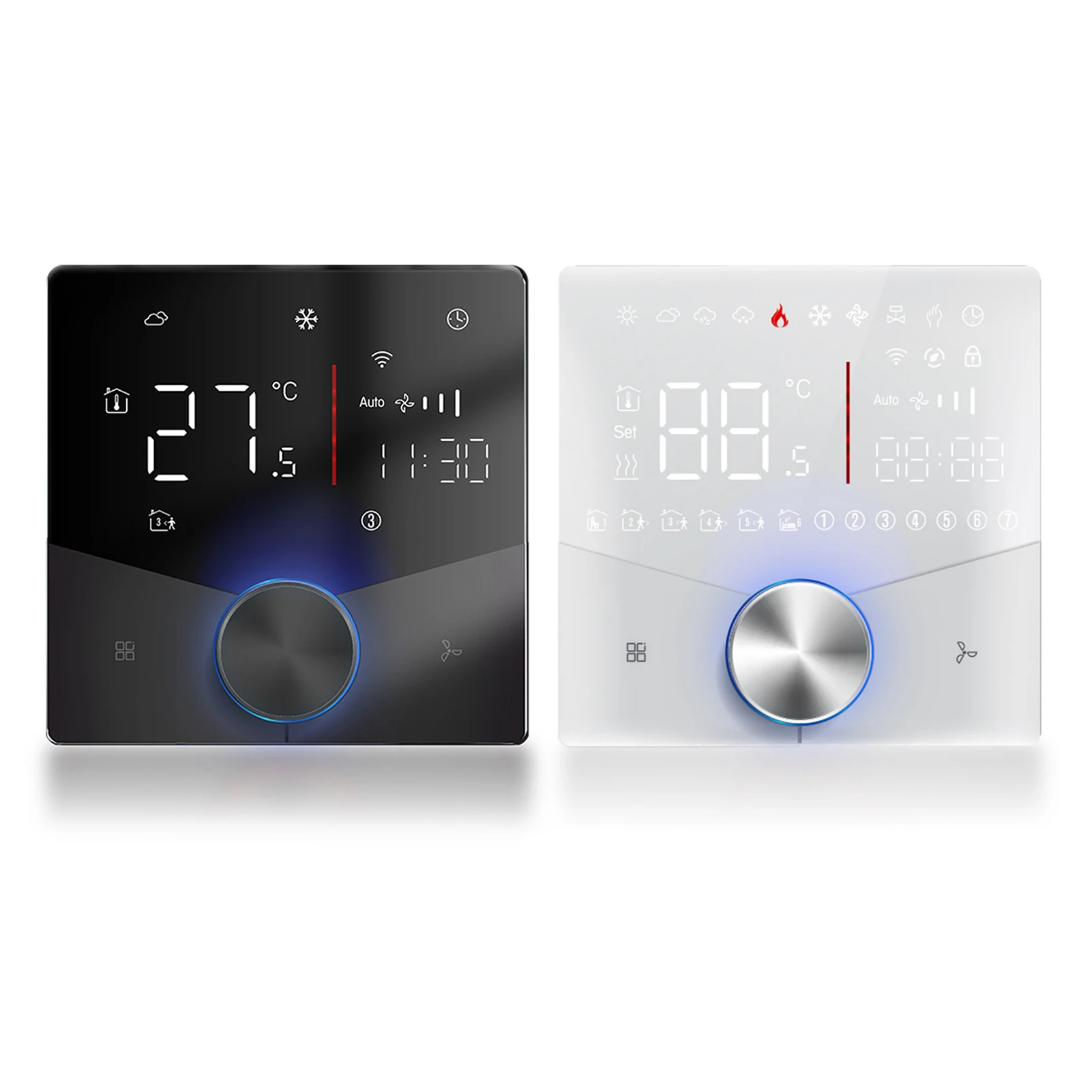

WiFi Air Conditioner Thermostat 5+2 Days 6 Periods Programmable Central Air Conditioning Temperature Controller
Feature:

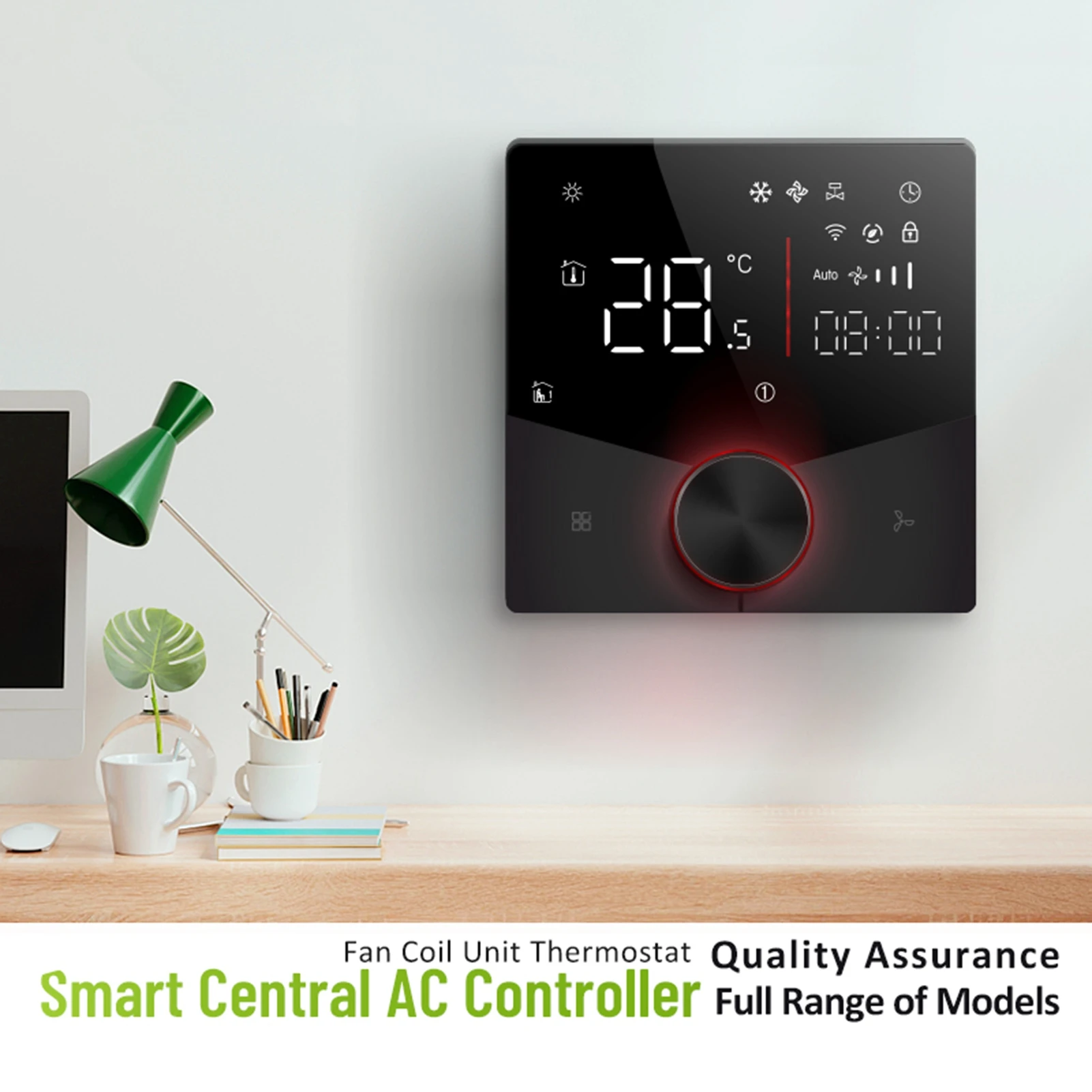

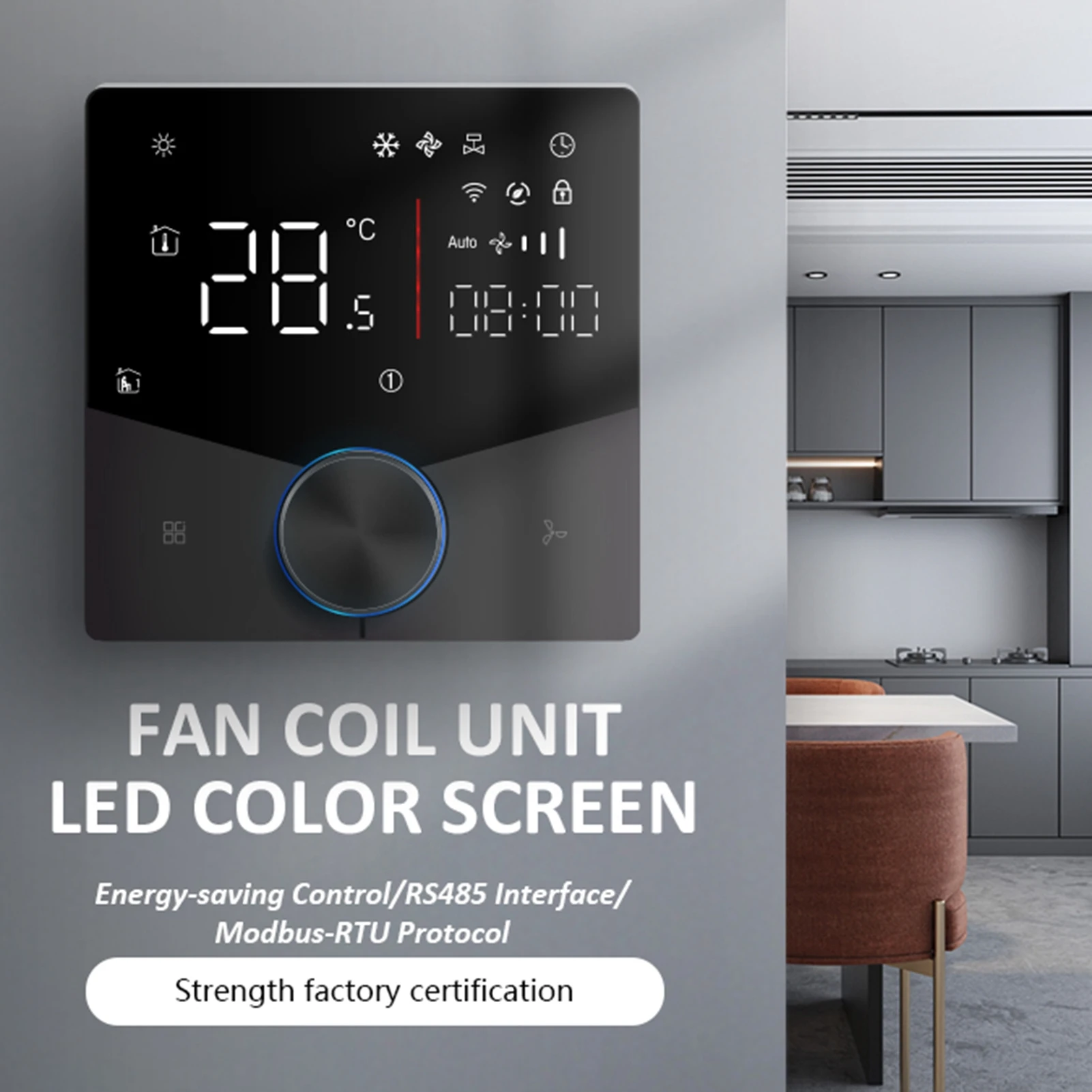

1. [Central AC Thermostat] This central air conditioning thermostat adopts LED panel, allowing for energy saving control, with 485 interface, supporting RTU protocol.

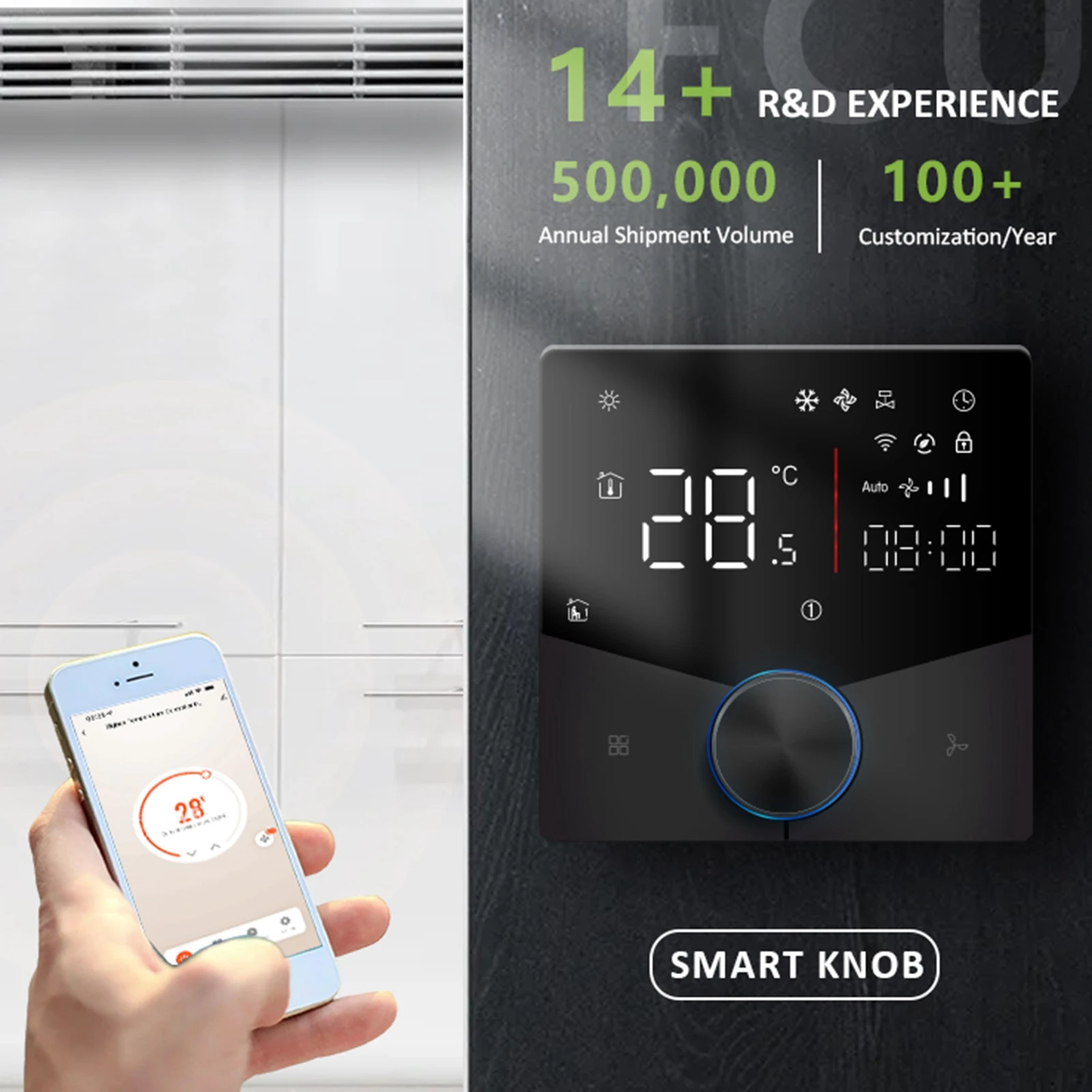

2. [User Friendly Control] The thermostat combines colorful lighted temperature control knob and large touch keys, making it easier to operate.
3. [Thin Control Panel] This wall mounted temperature controller is thin, with a thickness of 12.4mm; Multiple installation positions for easier integration into scenes.

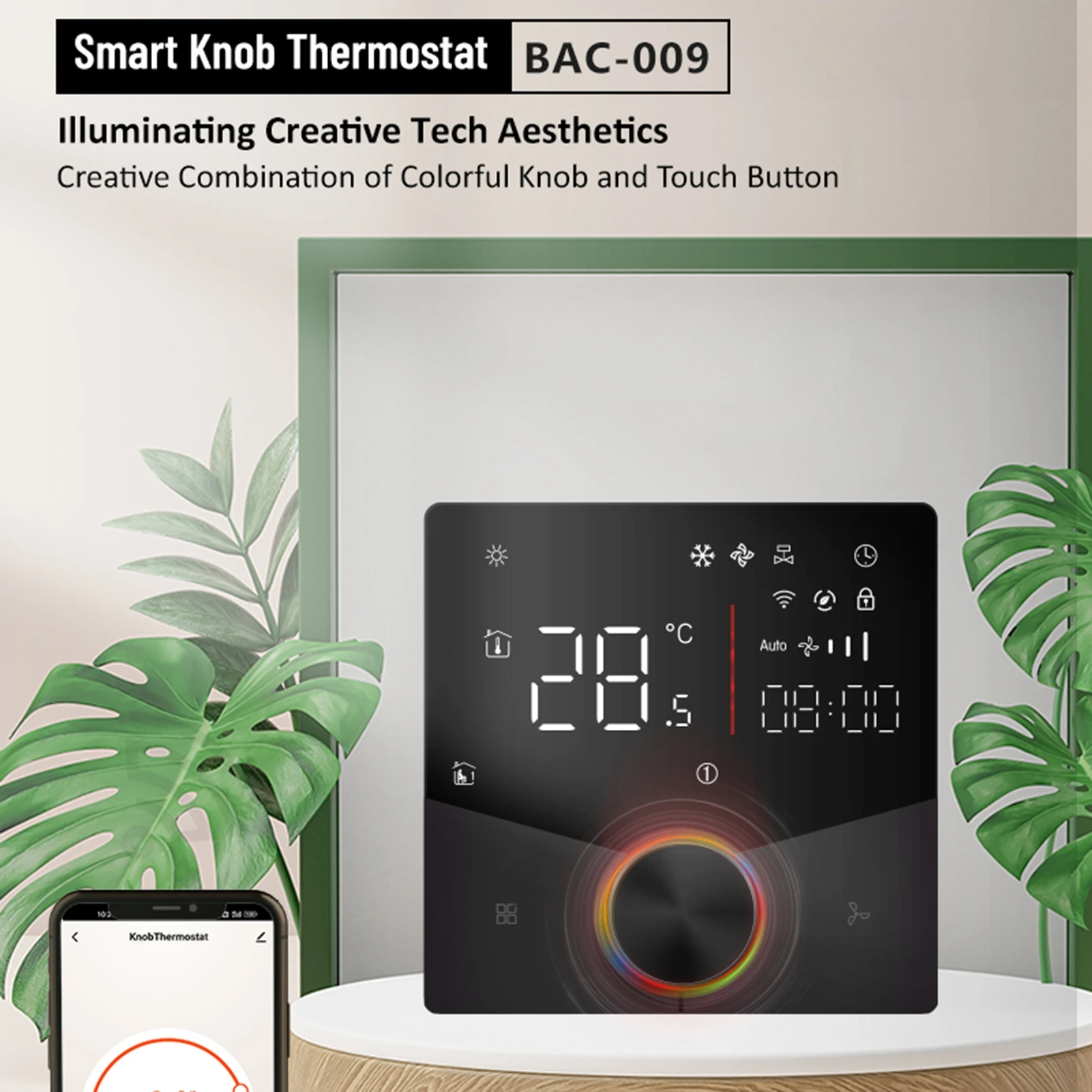

4. [Cool Lighting Effect] The knob features 8 lighting effects, 7 color lights transition with Xmas light mode, adding a cool visual effect to your home.

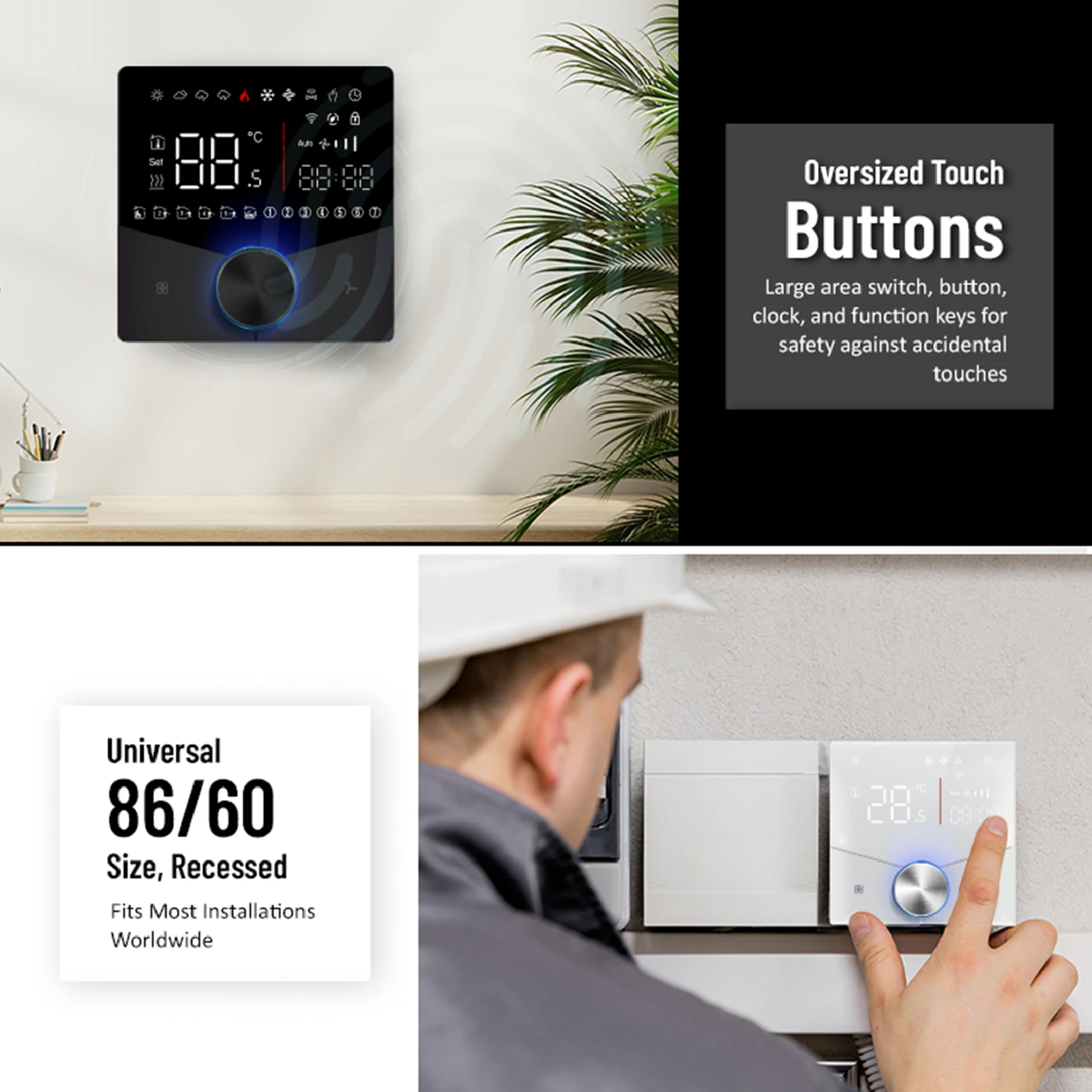

5. [Versatile Installation] This smart air conditioner thermostat supports 86×86 square or 60mm round box installation, suitable for most installation environments.

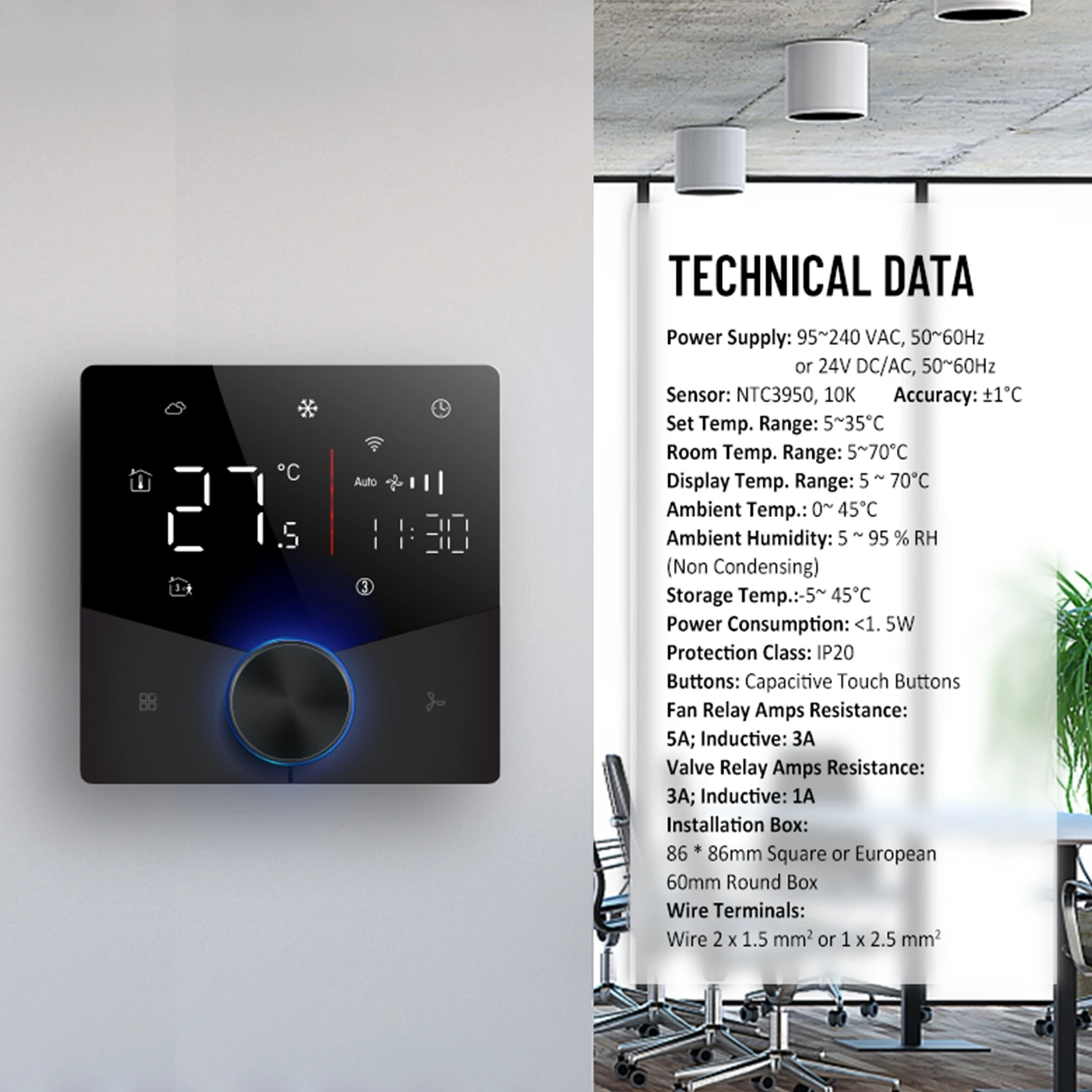

Specification:
Item Type: WiFi Air Conditioner Thermostat
Enclosure Material: PC, ABS (Fireproof)
Model: BAC-009ELW
Power Supply: 24V DC/AC 50-60Hz
Fan Relay Ampere Resistor: 5A; Inductance: 3A
Valve Relay Ampere Resistor: 3A; Inductance: 1A
Sensor: Negative Temperature Coefficient 3950, 10K
Setting Temperature Range: 5-35℃
Accuracy: ±1℃
Display Temperature Range: 5-99℃
Ambient Temperature: 0-45℃
Ambient Humidity: 5-95% RH (Non Condensing)
Storage Temperature: -5-45℃, Timing Error: Power Consumption: Mounting Box: 86 x 86mm Square or 60mm Round Box
Wire Terminal: Wire 2 x 1.5mm² or 1 x 2.5mm²
IP Rating: IP20
Button: Capacitive Touch Button
WiFi: 2.4G WiFi
How to Use:
Follow the instructions manual after taking out the product.
Package List:
1 x WiFi Air Conditioner Thermostat
Note:
The product is only suitable for 4 pipe air conditioner.
