Features:

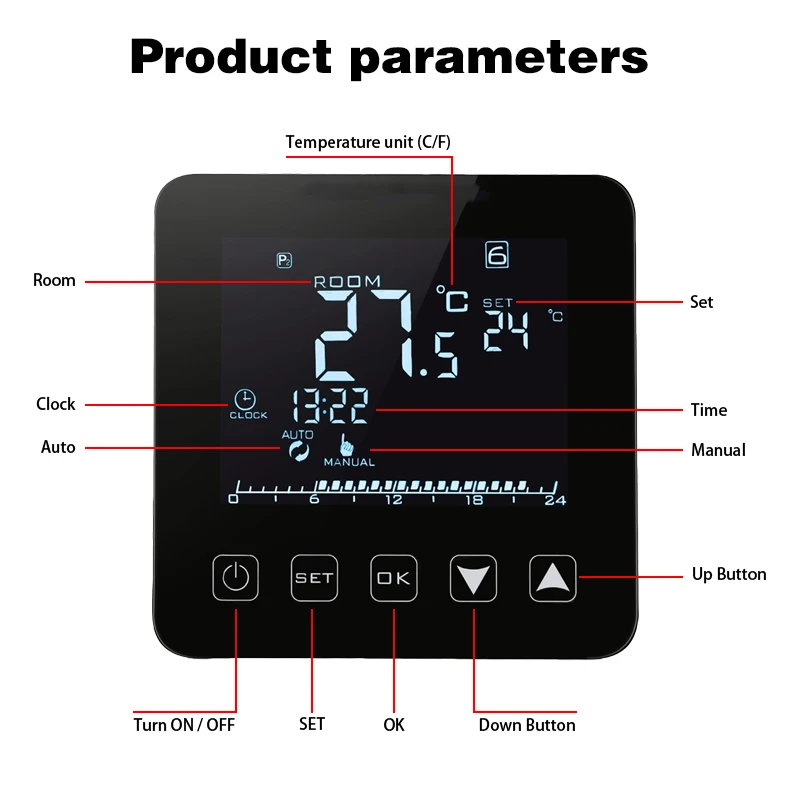

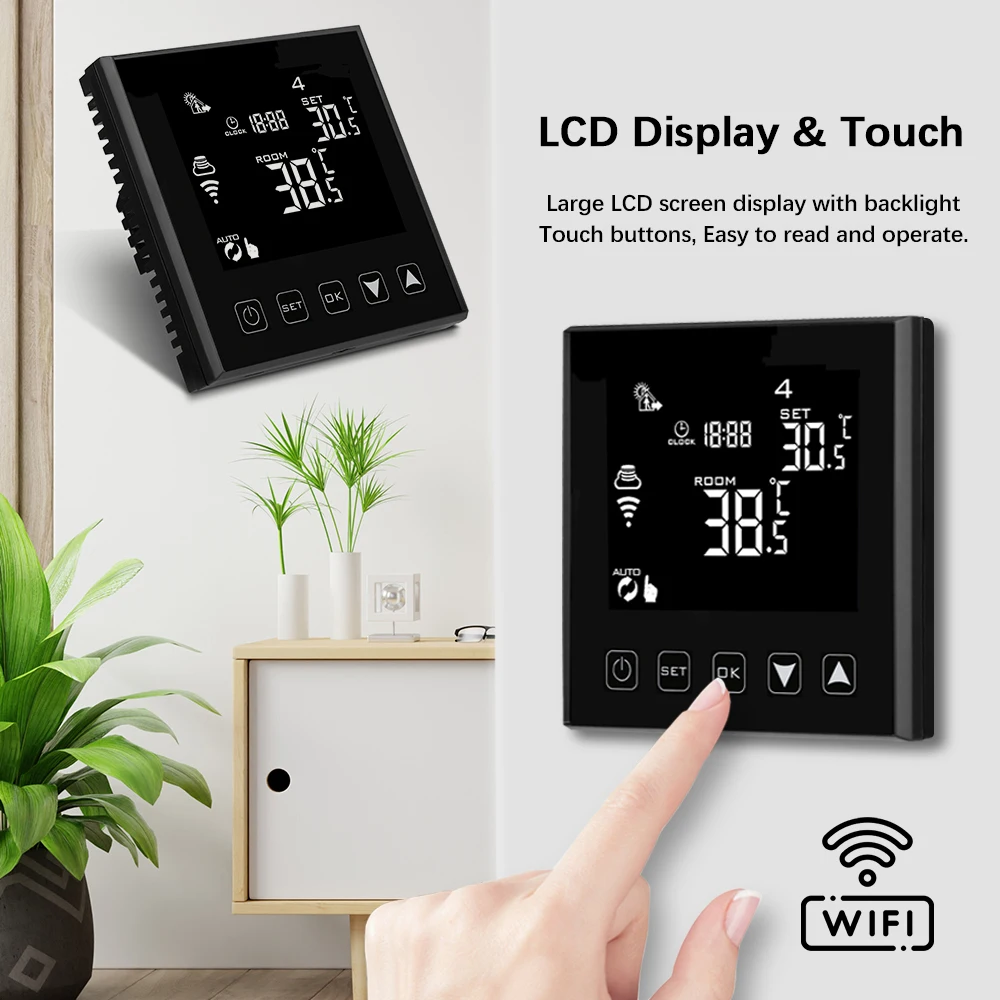

Large LCD negative screen backlight display, cool and modernized design.
Two modes option: manual mode & holiday mode.
6 period programmable controlling temperature setting.
Anti-freezing function.
Internal and external temperature sensor for choice.
Keypad locking function to prevent the children from misusing.
Memory function when power failure,protect your setting from power failure.
Frame resistance material, safe and reliable.
Room temperature display precision is ±0.5℃.
Room temperature automatically calibration function.
Come with 3m external sensor.
Specification:
Power Supply: 230~250VAC, 50/60HZ
Load Current: 16A(Electric Heating)
Working environment temperature: 0~70°C
Range of temperature display: 0~40°C
Range of temperature adjustment: 5~35°C
External sensor limit temperature:35℃-70℃ (45℃ default)
Internal sensor Hysteresis: 0.5-5℃ (1℃ default)
External sensor Hysteresis: 1-9℃ (2℃ default)
Accuracy: ±0.5oC
Setting unit: 0.5℃
Consumption:<0.3W
Internal Sensor: NTC
Probe sensor:NTC(10k)1%, Length=3 meters (optional)
Output: Switch relay
Installation: Flush mounting
Material: flame resistant PC ABS
Dimension: 86*86*13mm (H*W*D)
Display size: 60mm*42mm
Package Included:
1 x Thermostat
2 x Mounting Screws
1 x 3m External Sensor
1 x English Manual
