Product Description

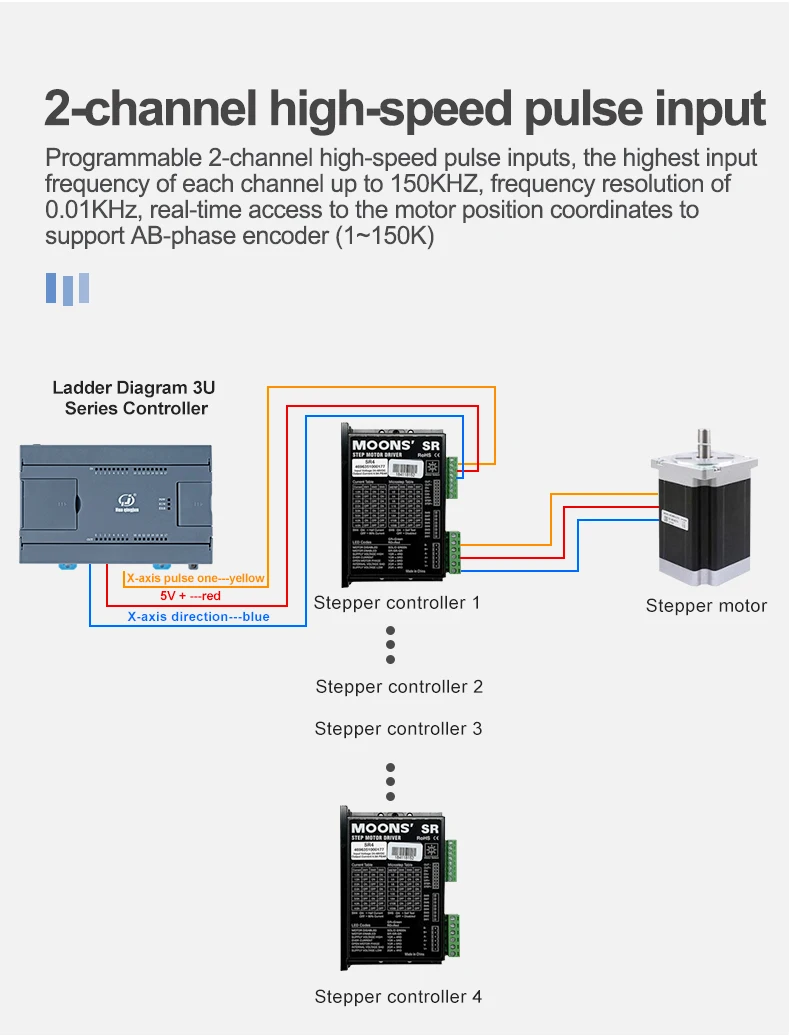

1. High-speed Input:
2-channel X00 X01 (200khz)
Trigger voltage 9-28VDC
Trigger current >3mA

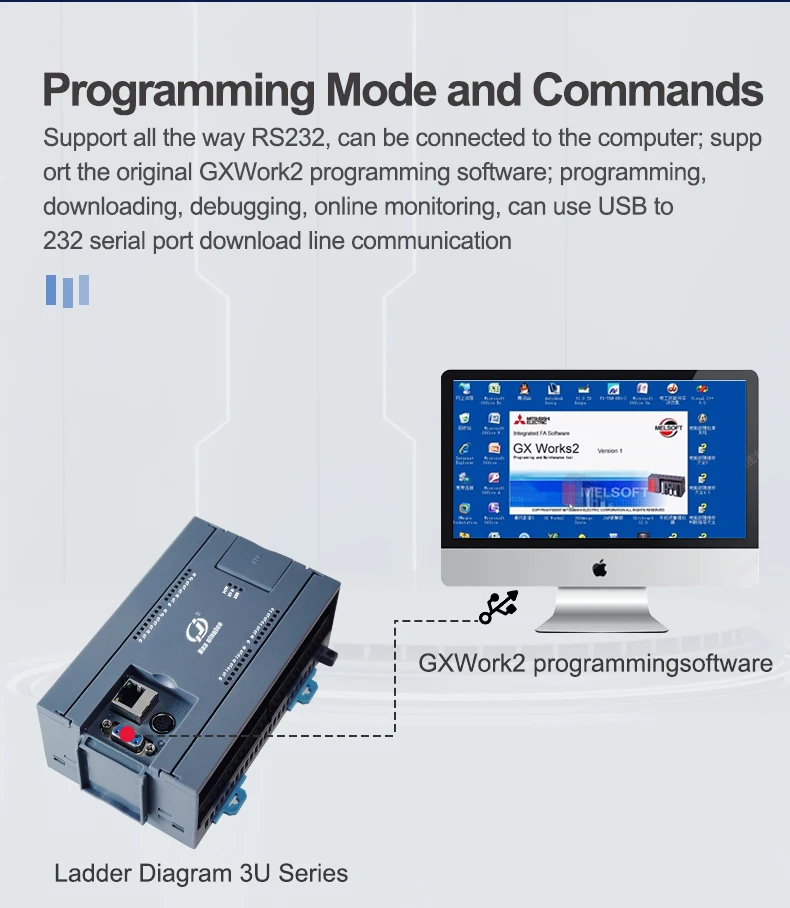

2. 232 Communication Port:
Channel number: 1
Baud rate range: 1200~115200Bps
Data format: 8N1/8O1/8E1/8N2/7N1/7O1/7E1/7N2
Protocol: MODBUS-RTU
Isolated voltage: 24VDC

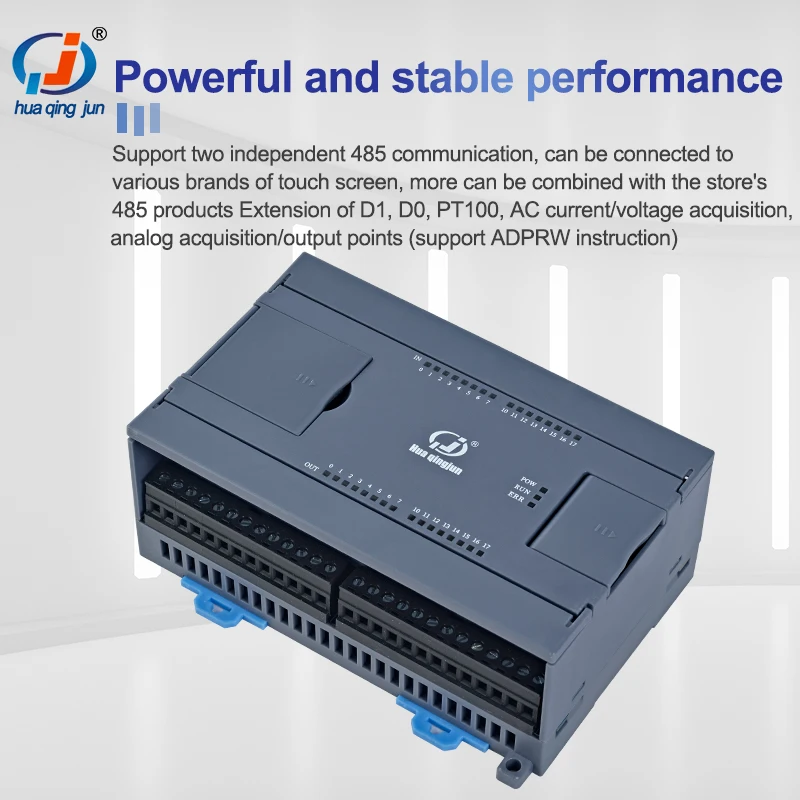

3. 485 Communication Port:
Channel number: 2
Baud rate range: 1200~115200Bps
Data format: 8N1/8O1/8E1/8N2/7N1/7O1/7E1/7N2
Protocol: MODBUS-RTU
Isolated voltage: 5kVrms

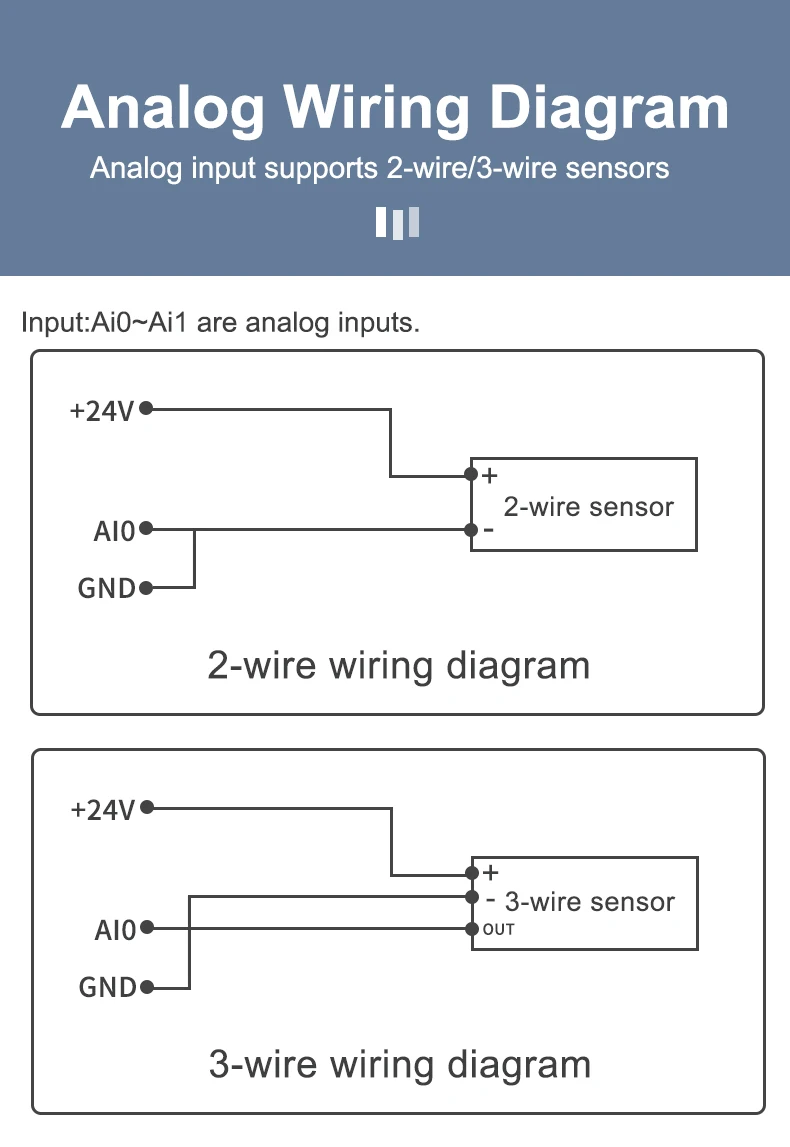

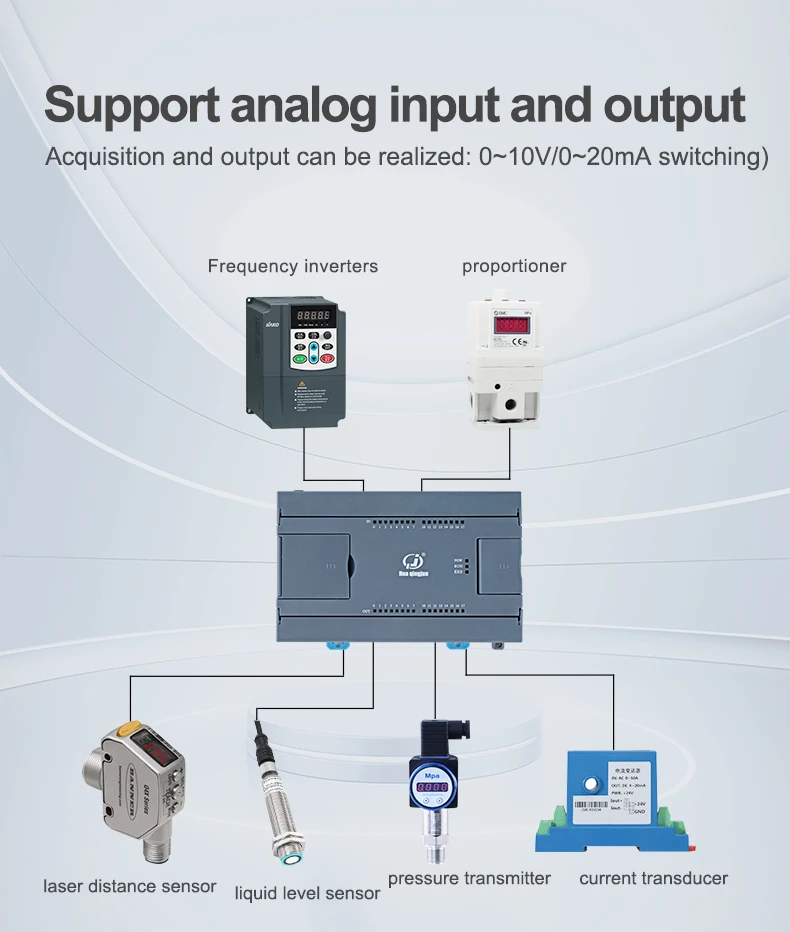

4. Analog input port
Channel number: 2
Current input range: 0~25mA （3~28VDC）
Voltage input range: 0~10VDC
Acquisition interval: 0.1~1Khz
Ultimate voltage: 28VDC
5. Analog output port
Channel number: 2
Current input range: 0~20mA (24VDC)
Voltage input range: 0~10VDC (<=20mA)
Response time: Greater than 10mS

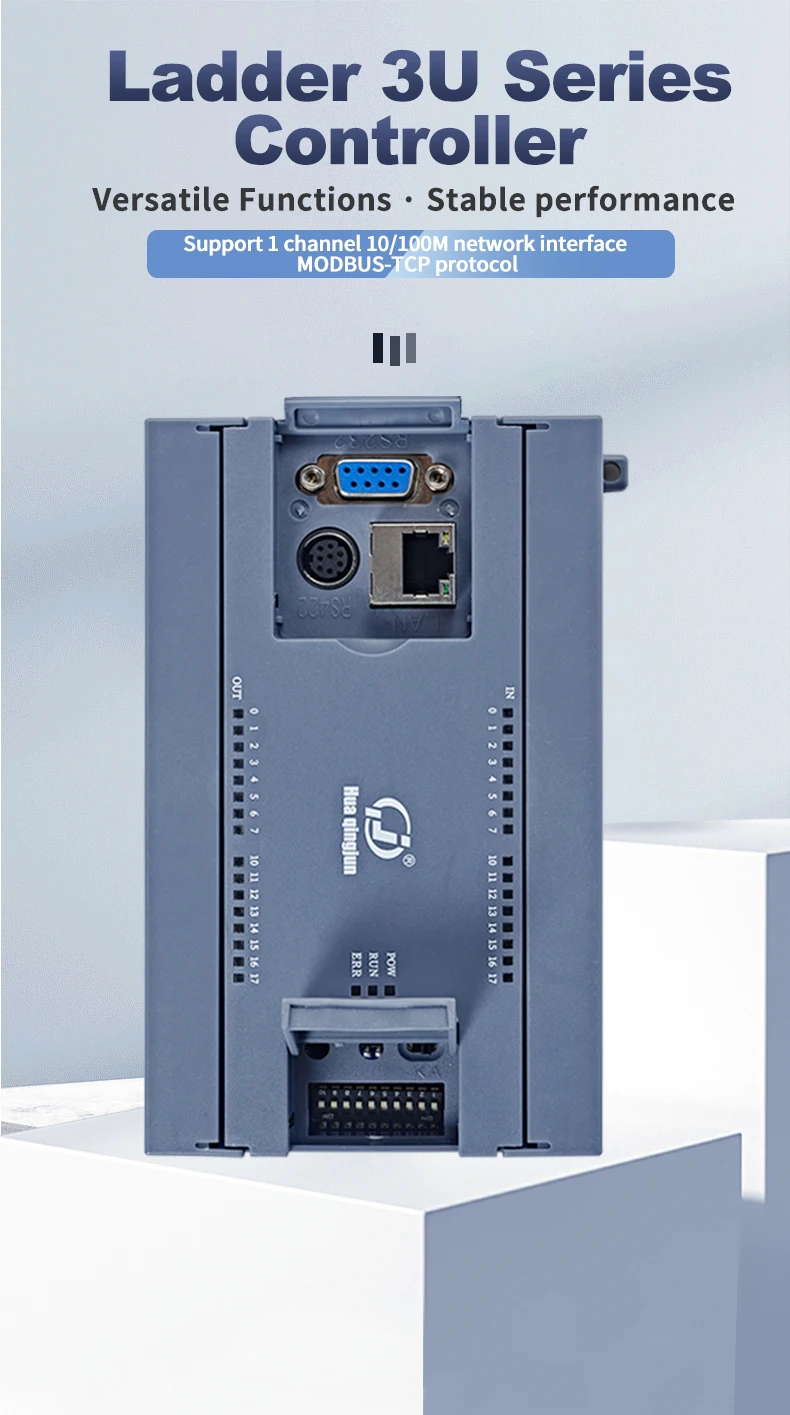

6. Ethernet port
Number of socket channels: 4
Supported protocols: MODBUS-TCP protocol
Maximum support for 4 slaves
Bandwidth: 10/100Mbps
Support for downloading programmes

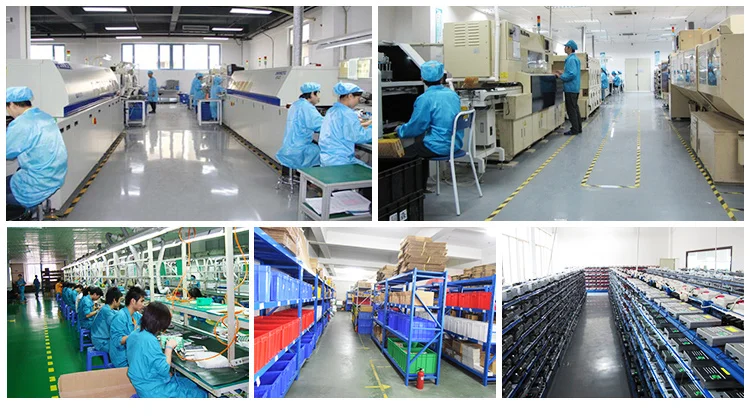

Company Description
PACKING & DELIVERY
Packaging Details: standard paper box
Lead Time: 1-5 days after payment for sample order
10-25 days after payment for big order
FAQ
Q1. What advantages do you have?
A: We have independent products, good quality products, excellent technical support and service.
Q2. How long is the quality guarantee?
A: Product quality warranty is one year.
Q3. What is the delivery time?
A: Normally, it is about 3-7 days after payment. It needs to be negotiated to special requirement orders.
Q4. How about the quality of your product?
A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing, the
necessary accessories and power adapter plug standard.
Q5. How do you keeping our long-term business and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
3. We could customize modules according to customer’s requirements.
