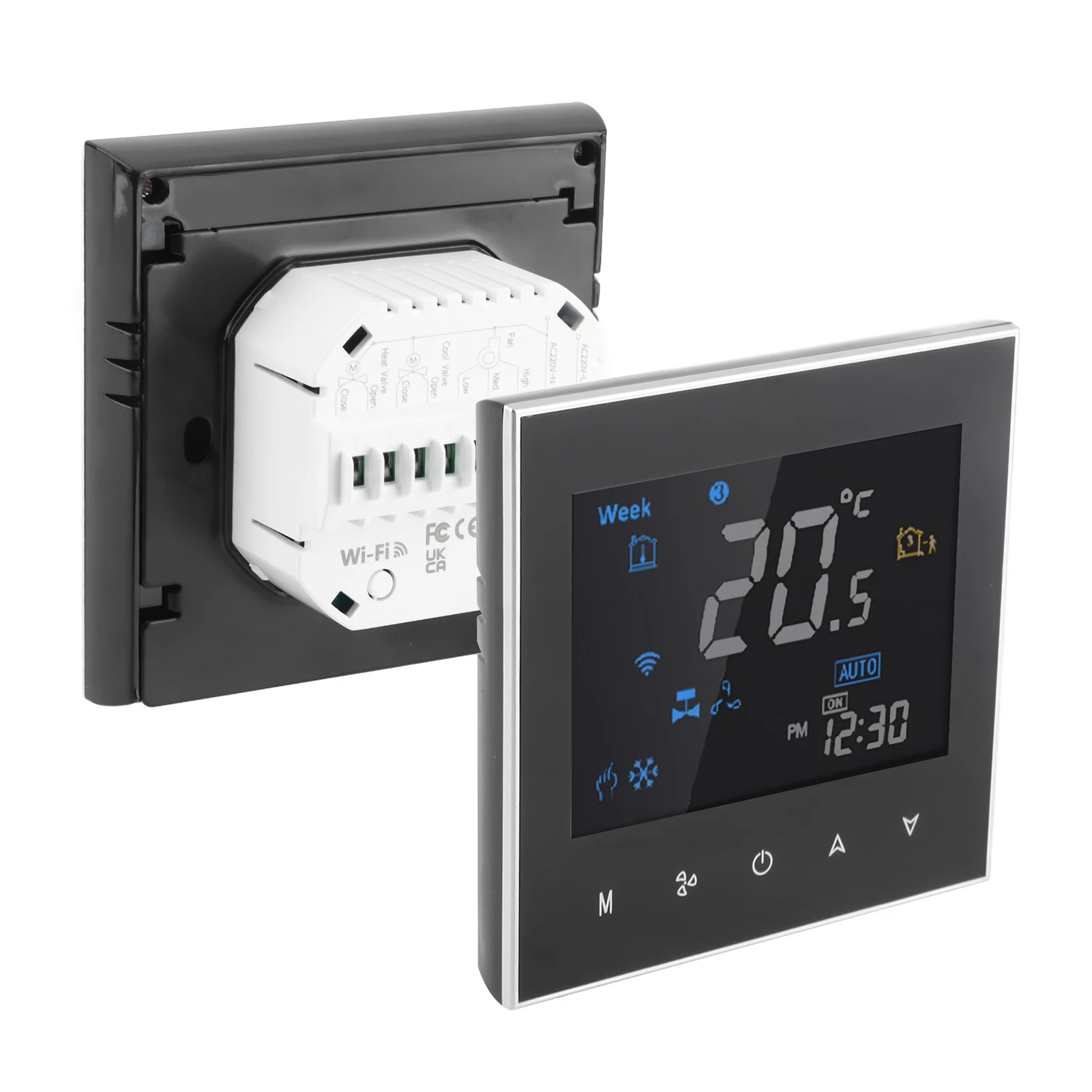

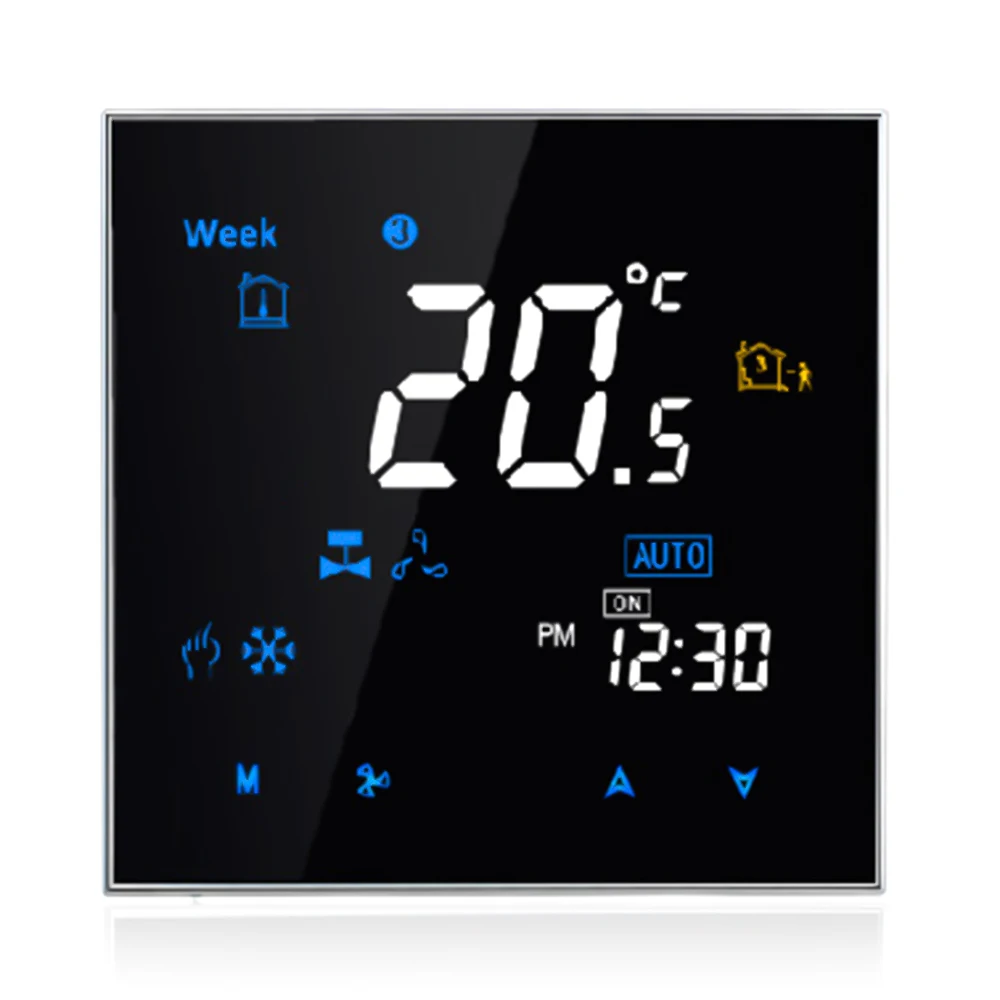

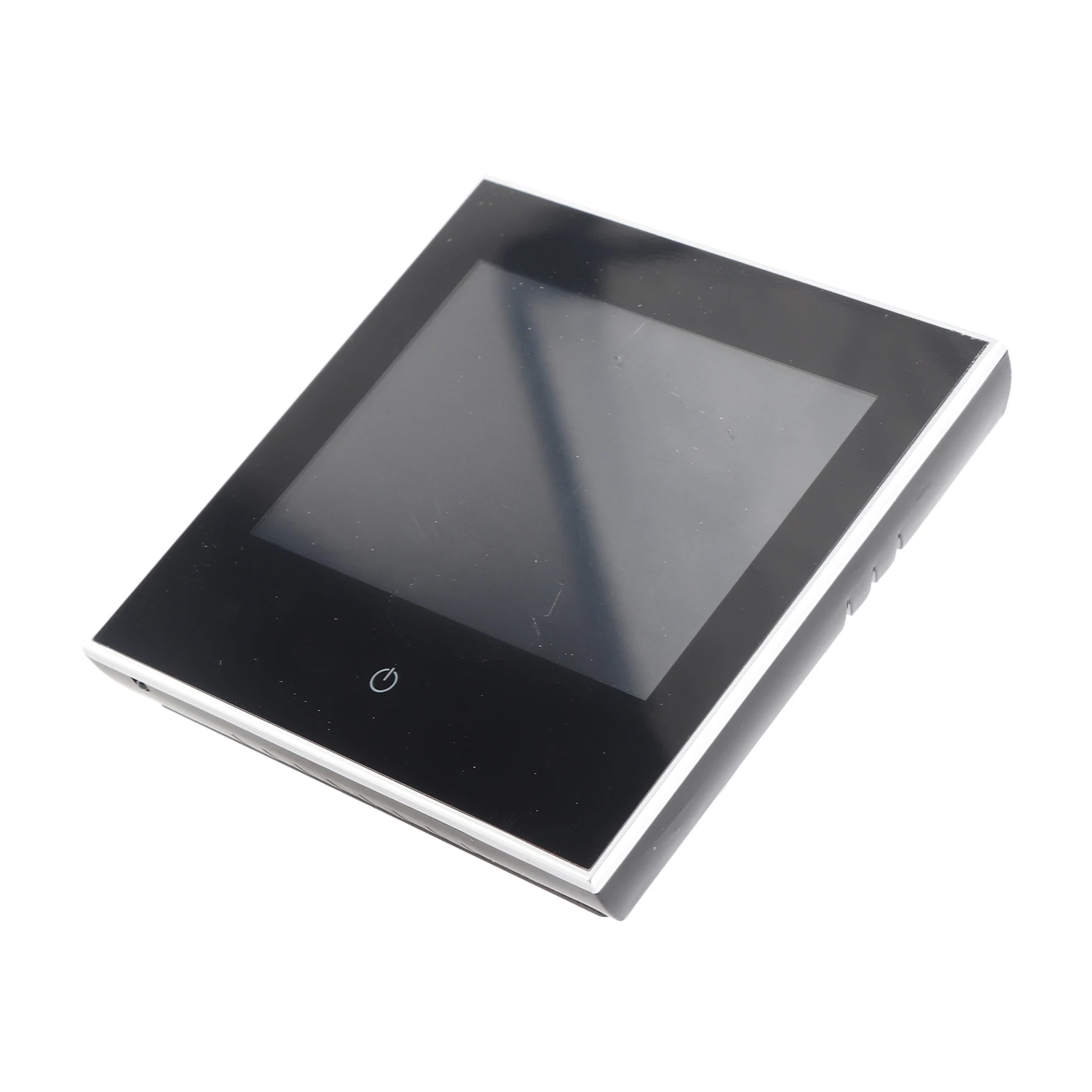

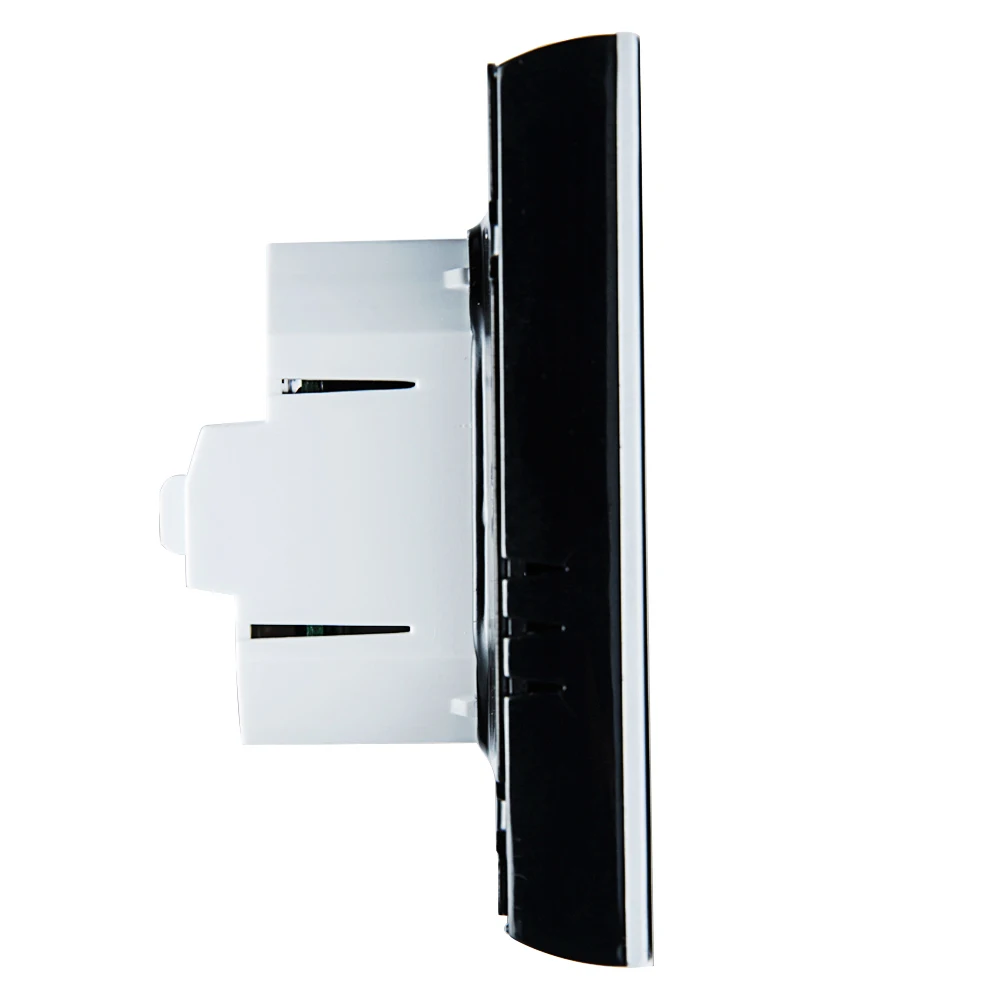

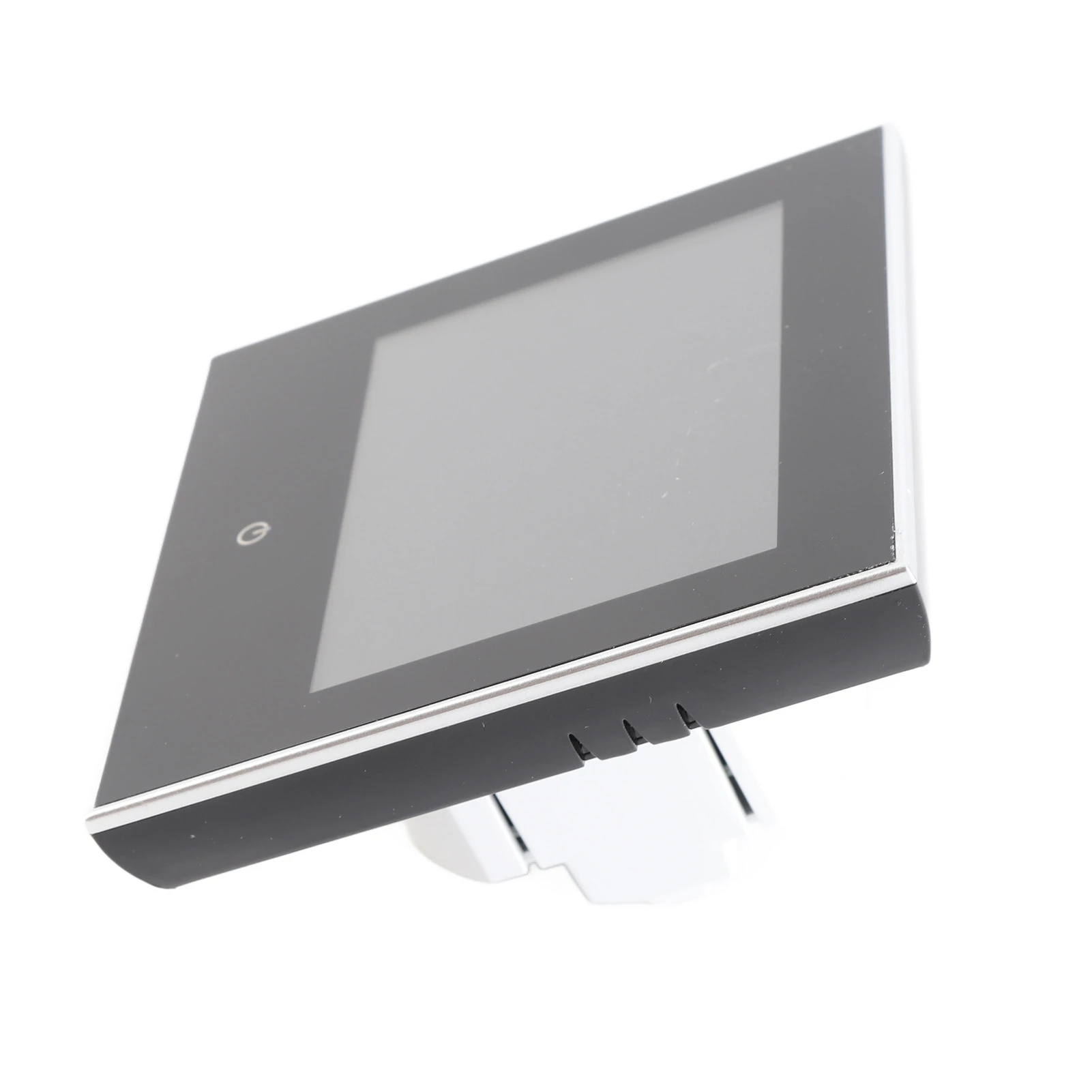

Four Pipe Wifi Voice Intelligent Room Thermostat Digital Programmable Temperature Controller for Air Conditioner (BAC-3000ELW, Black)
Feature:
1. 0.5°C Accuracy keeps temperature within the level you set.
2. Clock memory when power is off.
3. 5+2 six periods programmable maximize comfort and economy.
4. Create thermostat group to centrally control.
5. All setting languages synchronize your time zone, address and language.
6. No limit to add rooms and support intelligent scene.
Specification:
Shell Material: PC +ABS ( Fireproof)
Model: BAC-3000AL, BAC-3000ALW, BAC-3000EL, BAC-3000ELW (optional)
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Accuracy: ±0.5℃
Set Temp. Range: 5 -35℃
Dispaly Temp. Range: 5 ~ 99℃
Ambient Temp.: 0 ~ 45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: -5 ~ 45 ℃
Power Consumption: ＜1.5W
Timing Error: < 1%
Installation Box: 86 * 86mm Square or European 60mm Round Box

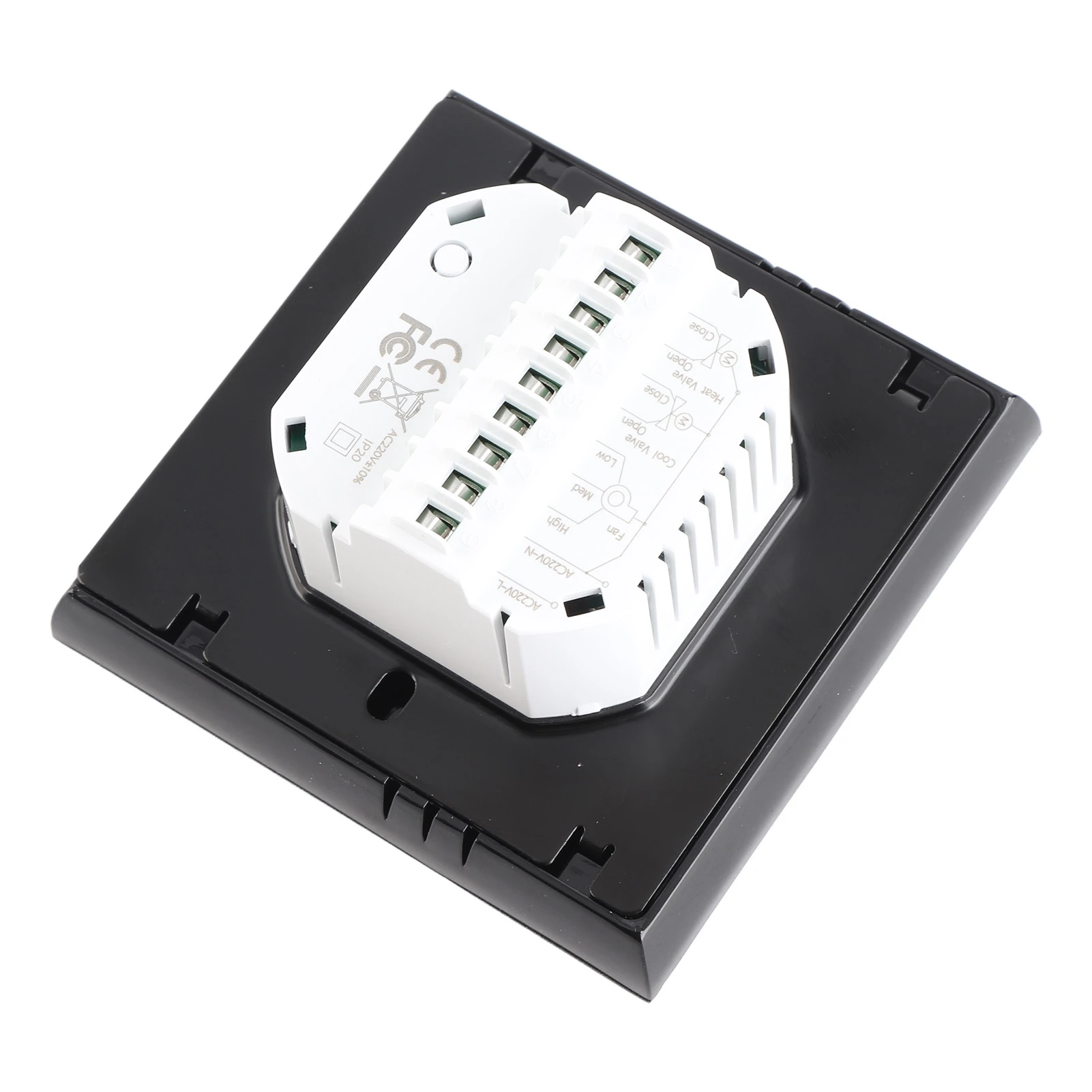

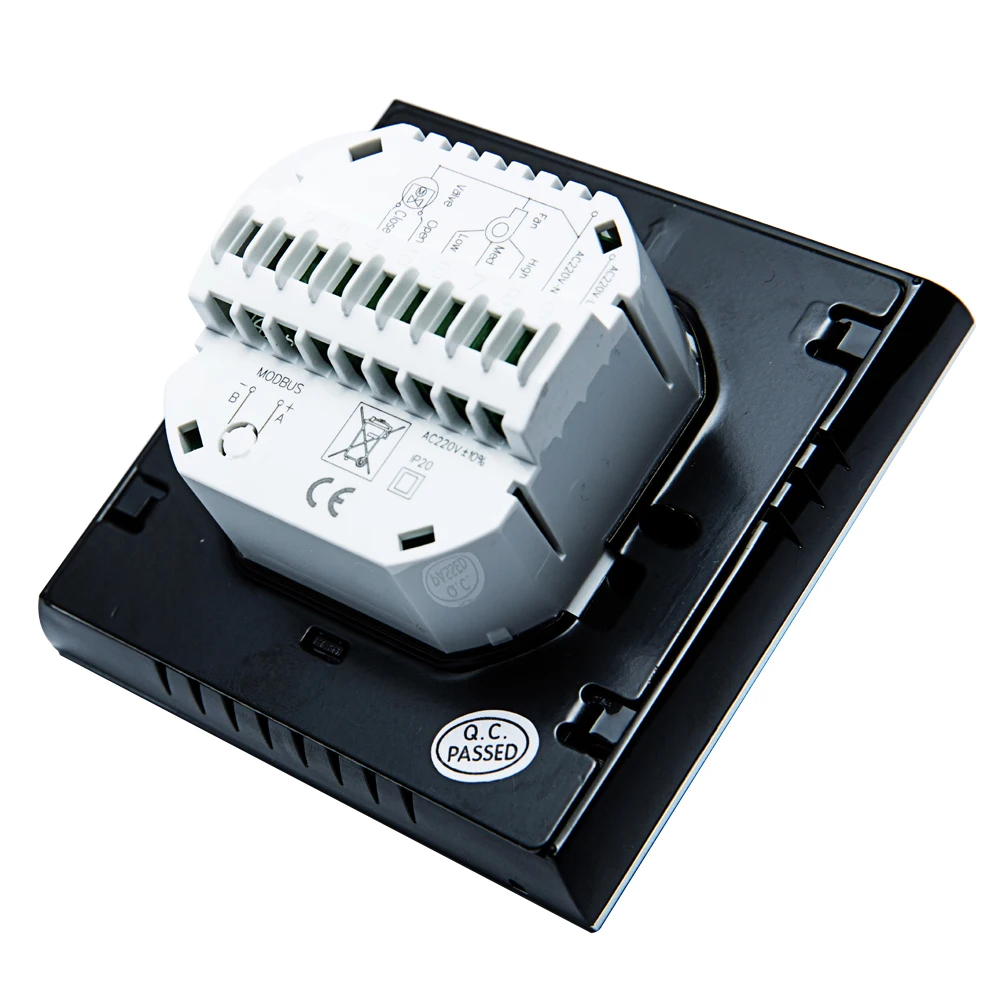

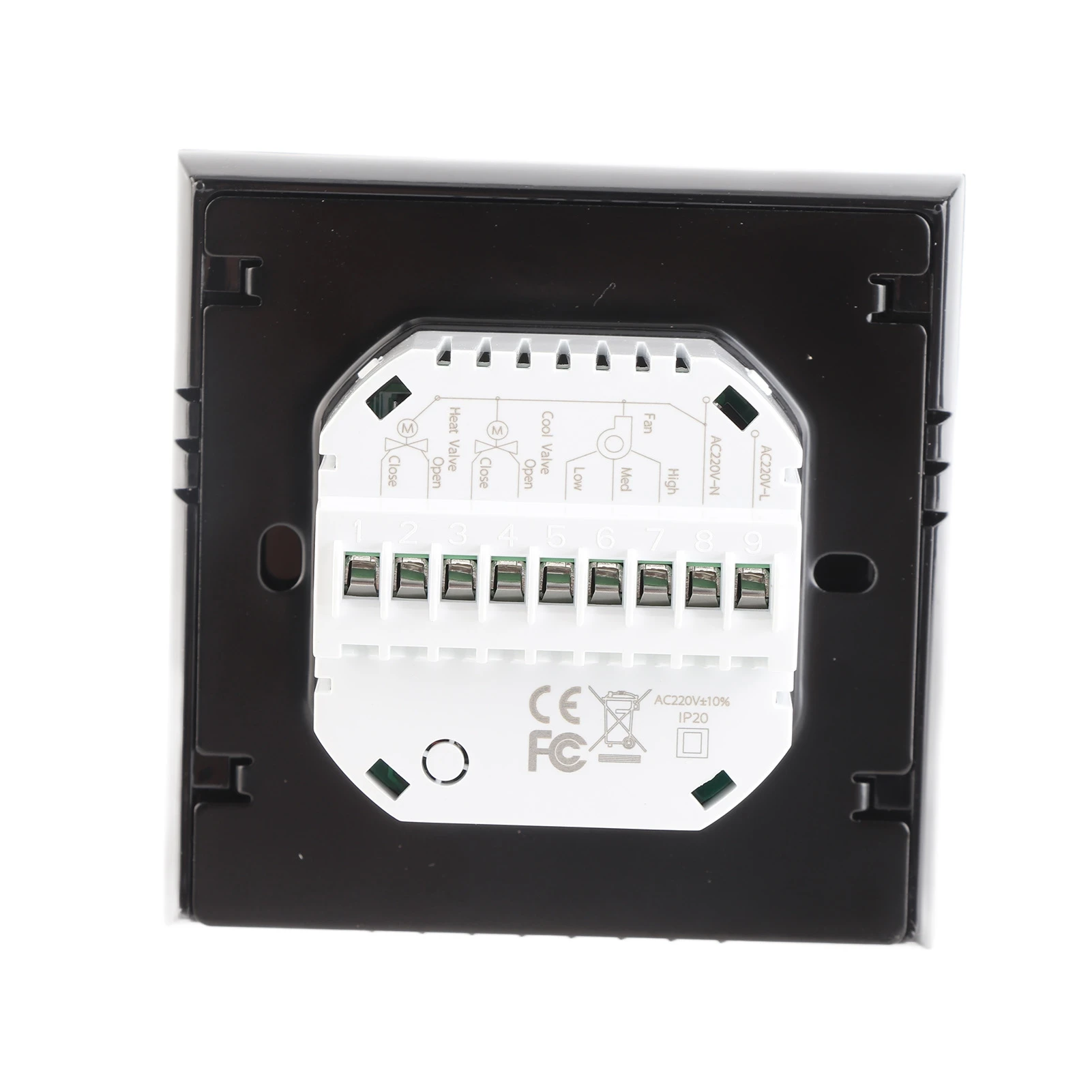

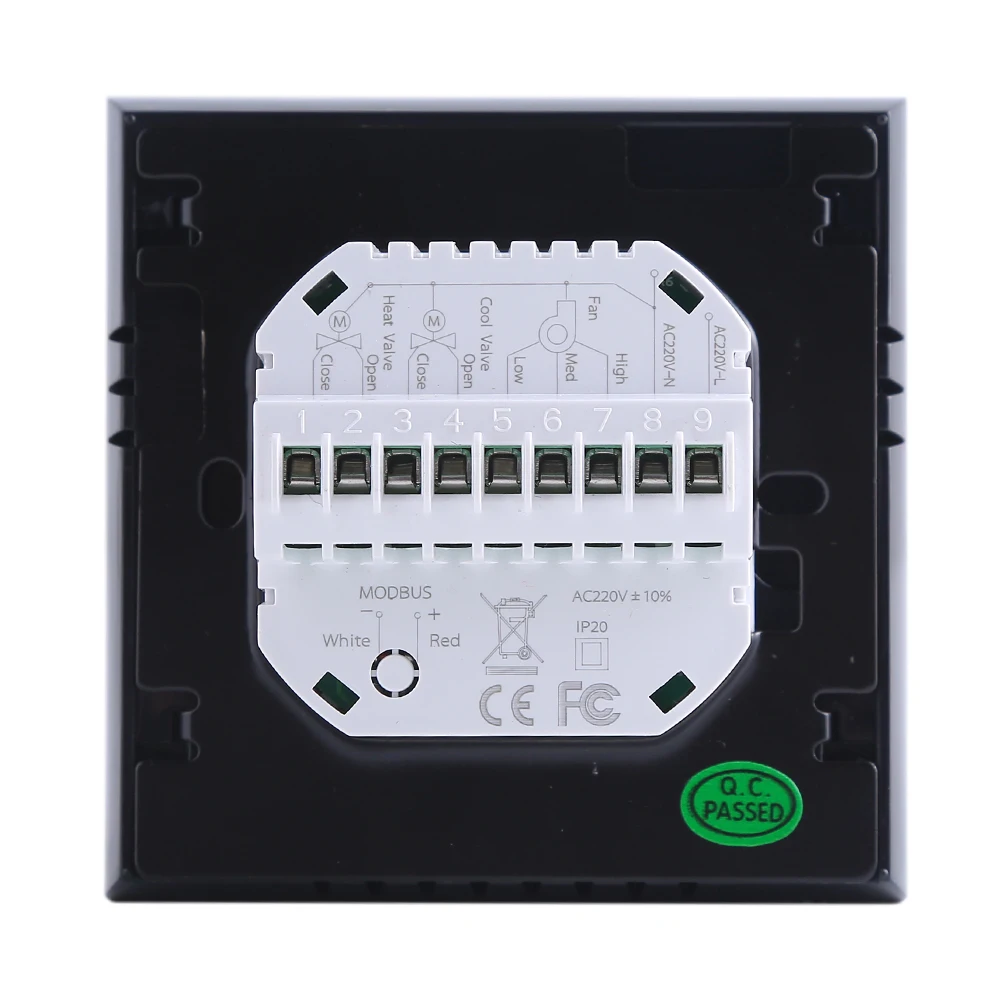

Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
conservation Class: IP20
Buttons: Capactive Touch Buttons

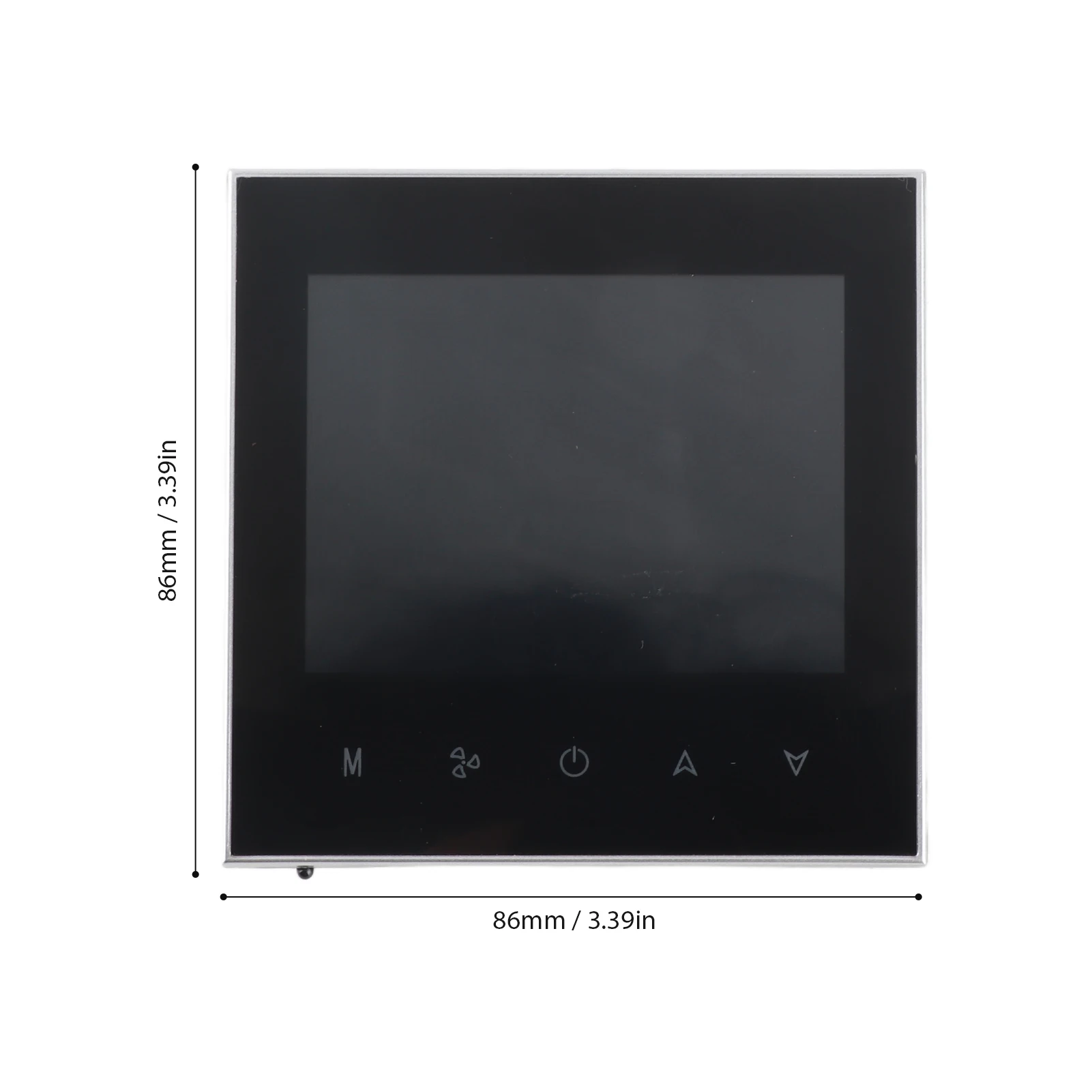

Item Size: 86 * 86mm / 3.39 * 3.39in
Model Definition:
A : Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
L: Backlight
W: Wifi connection

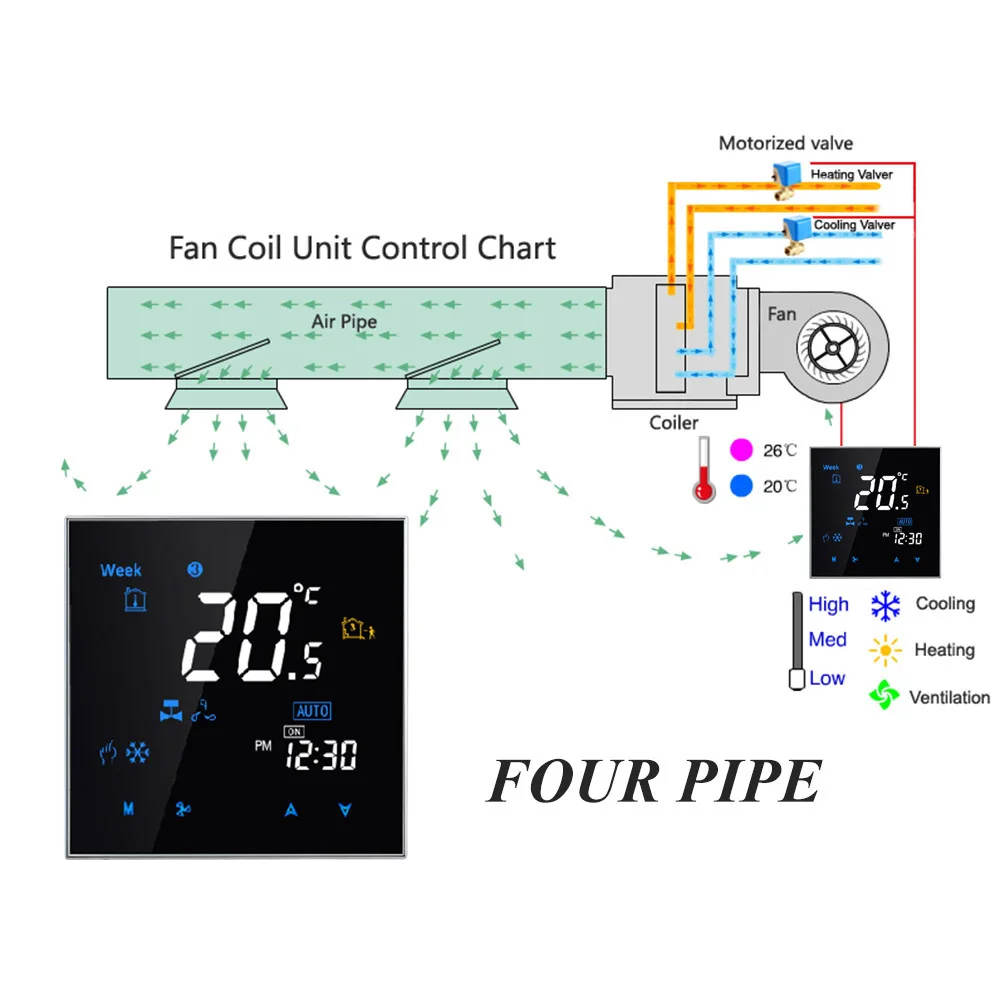

E : Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve
Package List:
1 * Thermostat
2 * Screws
1 * Wall Plate
1 * User Guide
or
1 * Thermostat
2 * Screws
1 * Wall Plate
1 * User Guide
Note:
The thermostat only can be used for central air conditioning system and control fan coil.
Two pipe valve: hot water supply in winter for heating, and cold water supply in summer for cooling.
Four pipe valve: cold and hot water supply at the same time, heating and cooling at any time.
