Input voltage: DC12V~24V (TYPE-C and DC input cannot be used at the same time!!)
Fast charging protocol: PD2.0/PD3.0

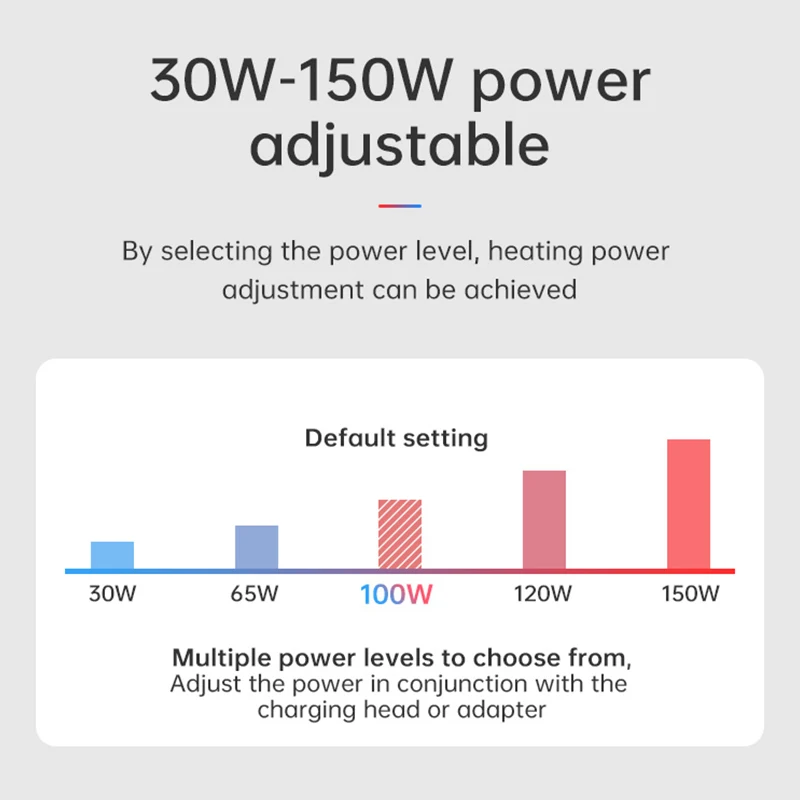

Power limit: 30W-150W
Temperature control range: 80℃ -350℃
Heating area: 50mm x 50mmm
Tip detection: 20°~50°
Standby power consumption: <=0.5W
Temperature stability: ±3%
Screen parameters: 0.96-inch IPS LCD 160 X80

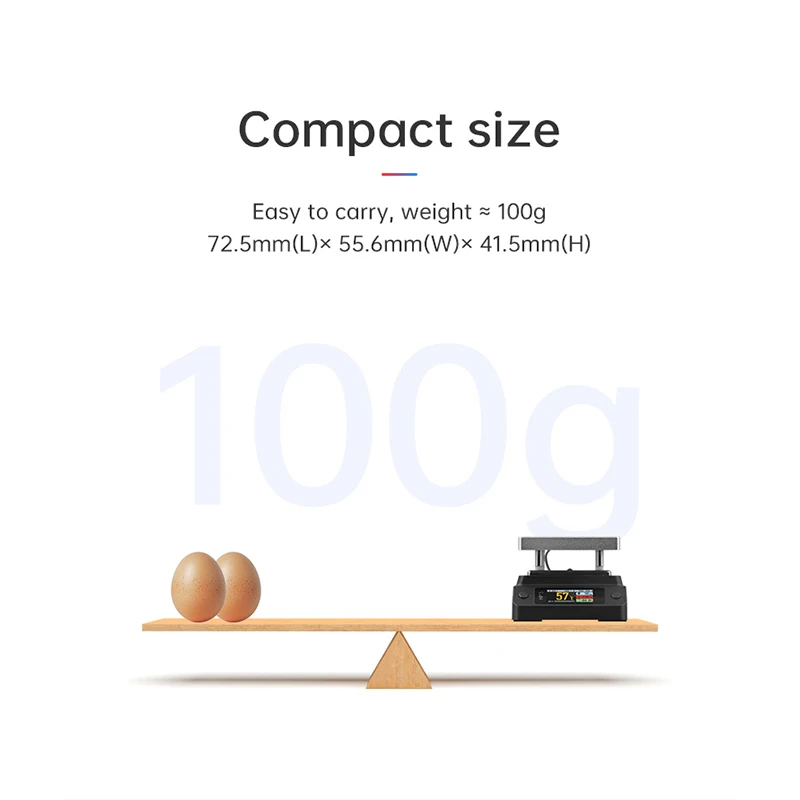

Product size: 72,5mm(L) x 55.6mm(W) x 41.5mm(H)
Features:

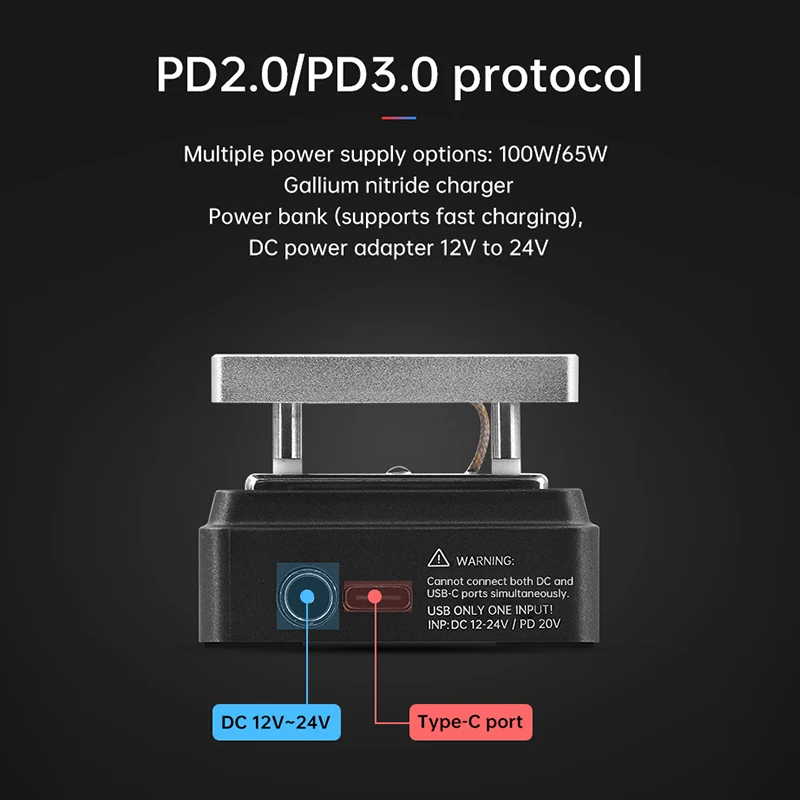

1. Support DC/Type-C power supply, flexible to use
2. Type-C power supply supports PD2.0/3.0 fast charging protocol
3. PID temperature control, accurate and fast

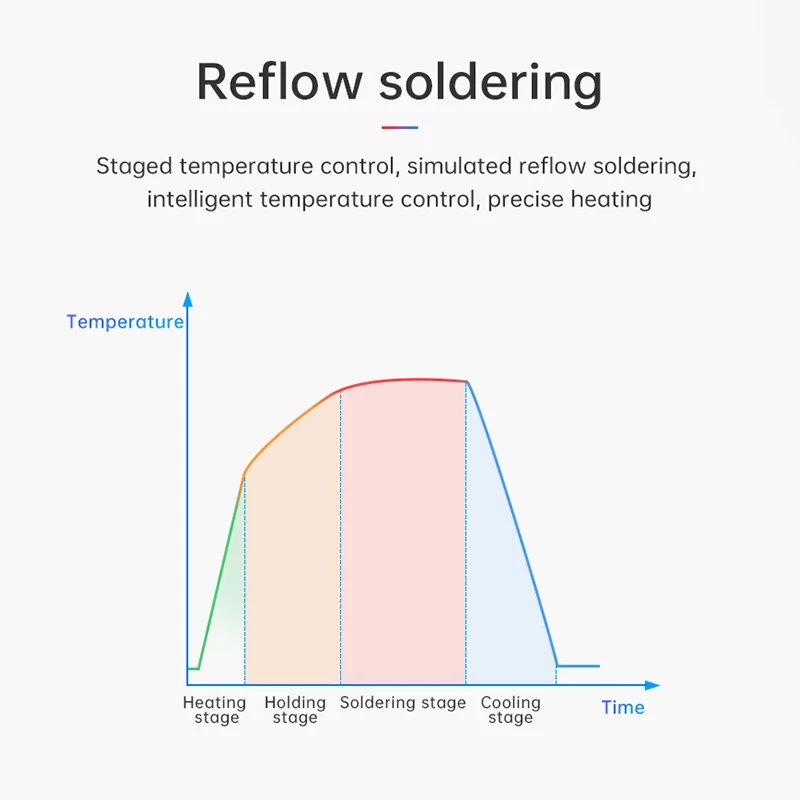

4. Support 80℃~350℃ heating temperature range Support 150W high-power heating, rapid heating Support constant temperature heating and reflow soldering dual working modes Support color light temperature prompt, color changes with temperature Support dumping detection, safer to use
5. Support power supply power adjustment, good power supply matching Support anti-reverse connection protection, over-temperature protection, etc.
6. Support firmware upgrade function
7. Split design, easy maintenance
8. Compact size, easy to carry
