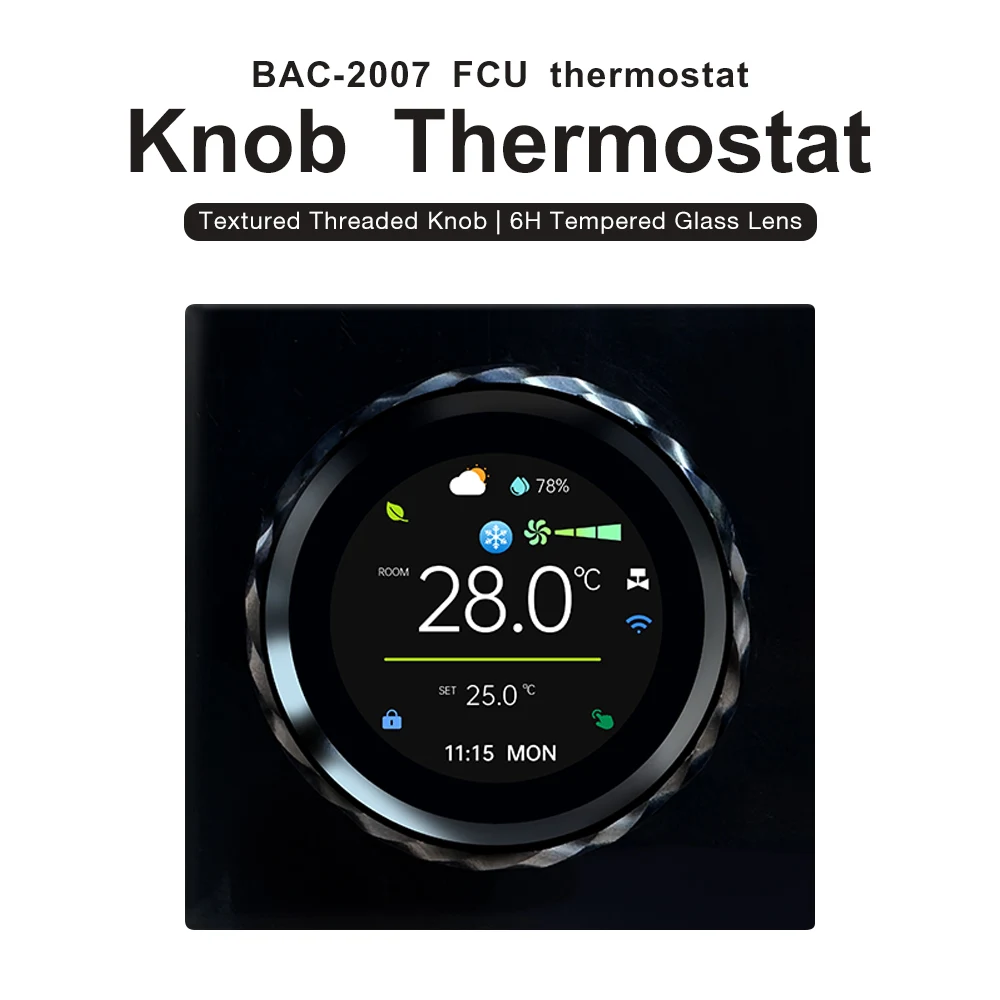

4 Pipe Tuya WiFi Smart Central Air Conditioner Thermostat Fan Coil Unit Voice Temperature Controller Alexa Google Assistant
*1.6 inch circular and 400*400 TFT;

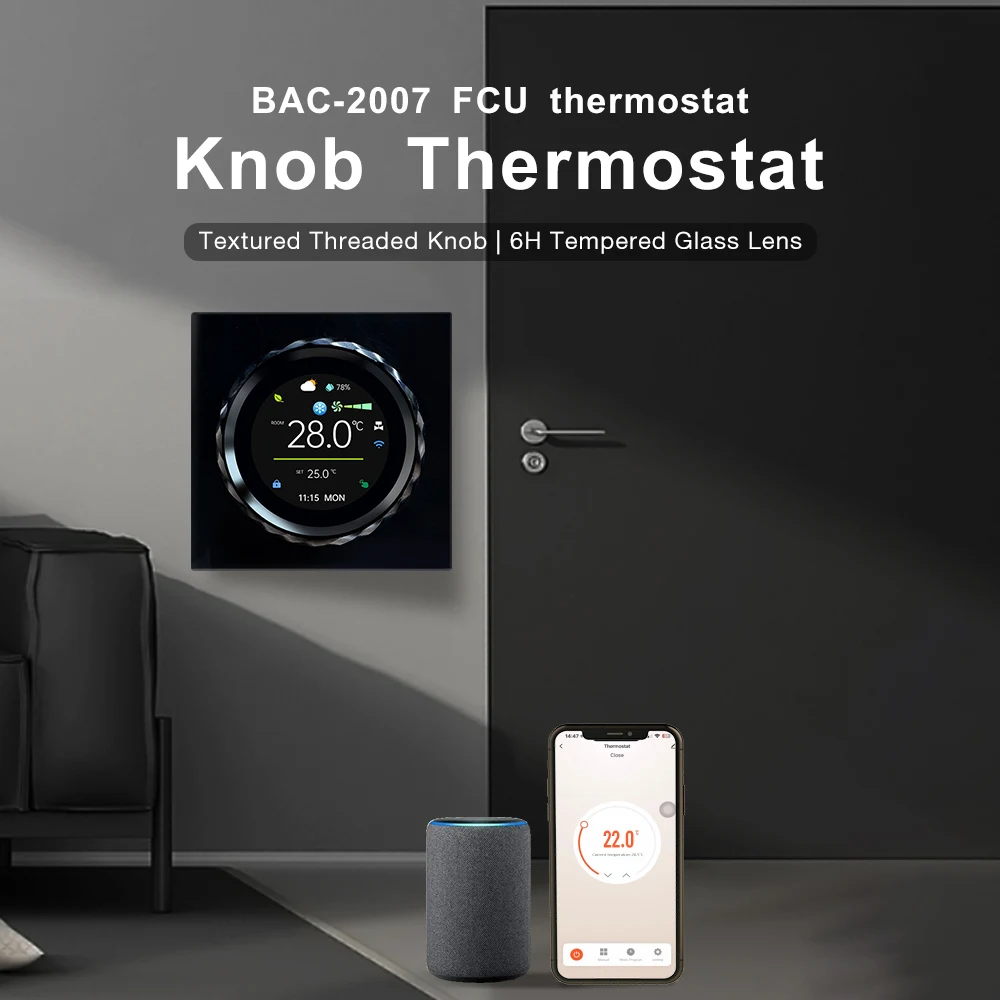

*Premium threaded side knob with an obsidian-like texture for a refined fingertip experience;
*Above 6H tempered glass keeps your screen away from scratches;

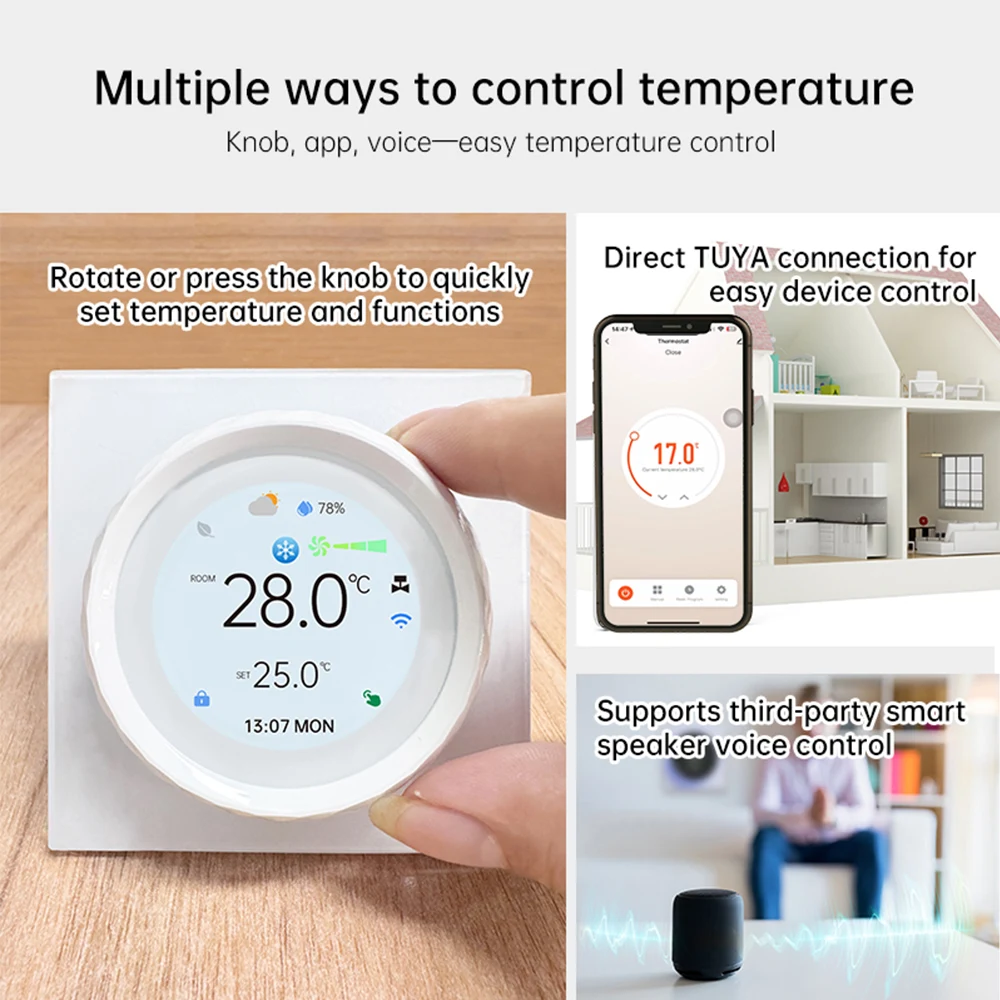

*Agile push button gives you an excellent experience;

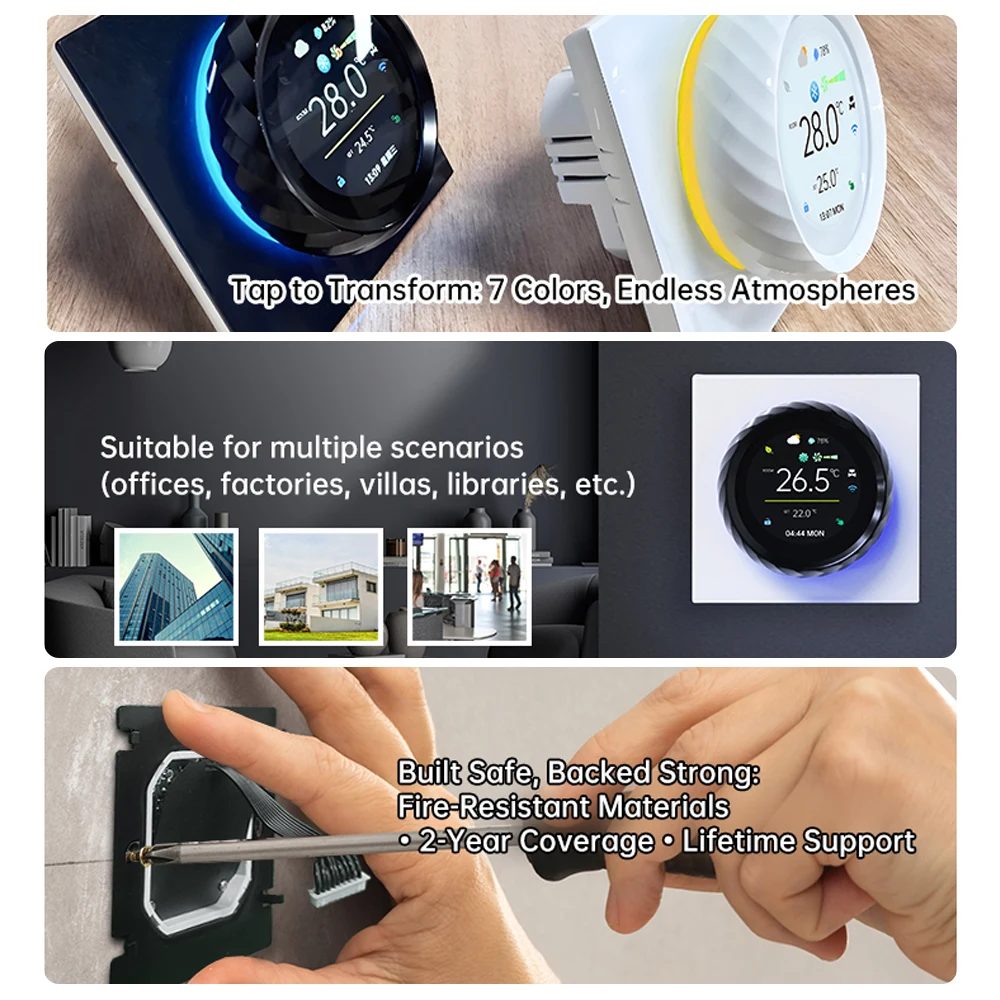

*Seven colors ambient light increase color to your life;

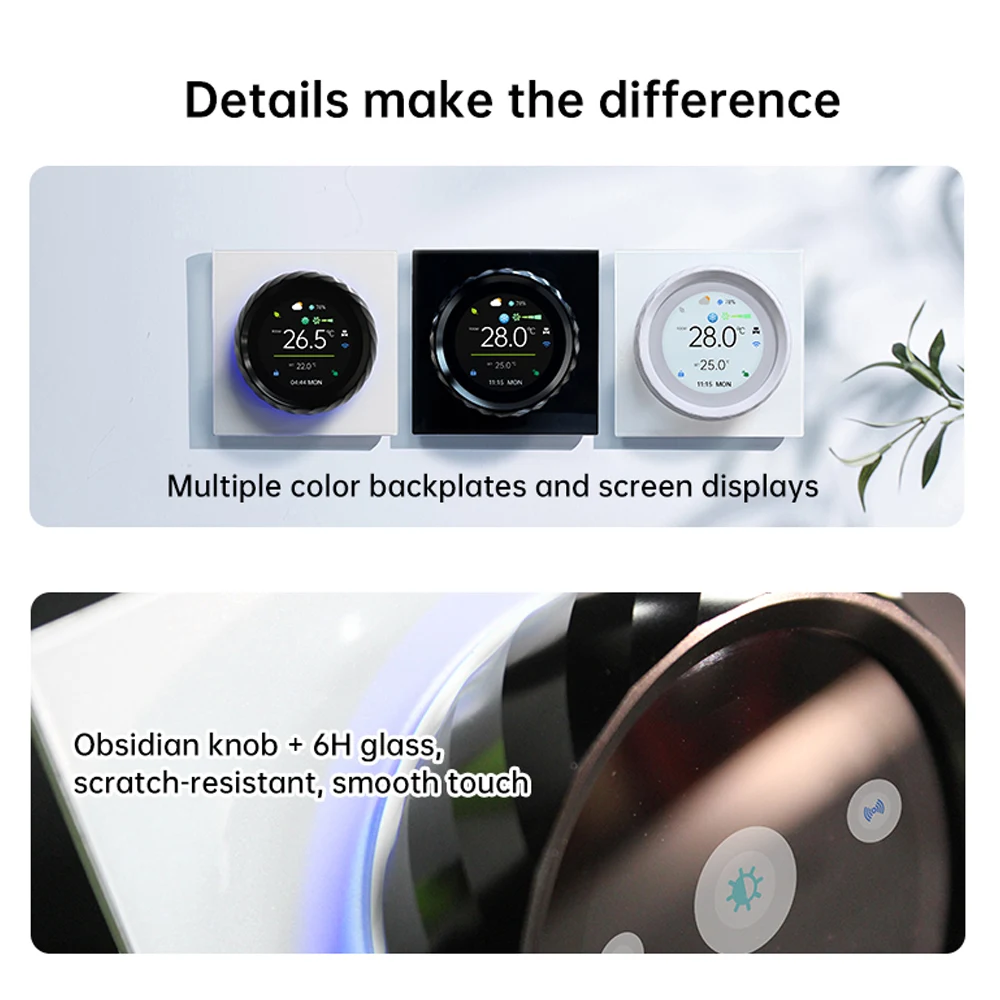

*Various back panel designs available to match different home styles;
* Supports language switching between Chinese, English, French, Italian, German, Russian, Spanish, and Portuguese.
TECHNICAL DATA
Power Supply:95 ~240 VAC, 50/60Hz or 24V DC/AC, 50/60Hz
(Please check the information laser printed on the back of the thermostat for the actual voltage.)
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Accuracy: ±1°C
Set Temp. Range: 5-45°C
Room Temp. Range: 5-70°C
Display Temp. Range: 5 ~ 70°C
Ambient Temp.: 0~ 45°C
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: 0~ 45°C
Power Consumption: <1. 5W
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)
Installation Box:
86 * 86mm National Standard / 60 * 60mm European Standard Junction Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP20
