YIDI 2 Pipe 4 Pipe Tuya WiFi Smart Life Central Air Conditioner Thermostat 3 Speed Fan Coil Unit Wireless Remote Temperature Controller Voice Control Work with Alexa Google Assistant
Attention:
Please help to check if your air conditioner is 2 pipe or 4 pipe and choose the right option.
Features:
YIDI WIFI Smart Room Thermostat is designed to control the fans and valves in air conditioner applications by comparing the room temperature with the desired setting temperature. This helps achieve comfort and engegy savings.
1. Suitable for 86mm hidden box or european 60mm round box.
3. White backlight protect your eyes.
4. Touch buttons allow for easy operation.
1. Powerful functions are available such as WIFI/Modbus ect. If need Modbus type, contact us.
2. 0.5℃ Accuracy keeps temperature within the level you set.
3. Clock memory when power is off.
4. 5+2 six periods programmable maximize comfort and economy/
5. Creat thermostat group to centralized control.
6. Integrated with Amazon Echo, Google Home, Tmall Genie.
7. Support device sharing to your family or friends.
8. All setting languages synchronize your time zone, address and language.
9. No limit to add thermostats in APP.
Power Supply: 95~240VAC, 50~60Hz
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC 3950, 10K
Accuracy: ±0.5℃
Display Temp. Range: 5~99℃
Ambient Temp.: 0-45℃
Ambient Humidity: 5~95% RH (Non Condensing)
Storage Temp.: -5~45℃
Power Consumption: ＜1.5W
Timing Error: ＜1%
Shell Material: PC+ABS (Fireproof)

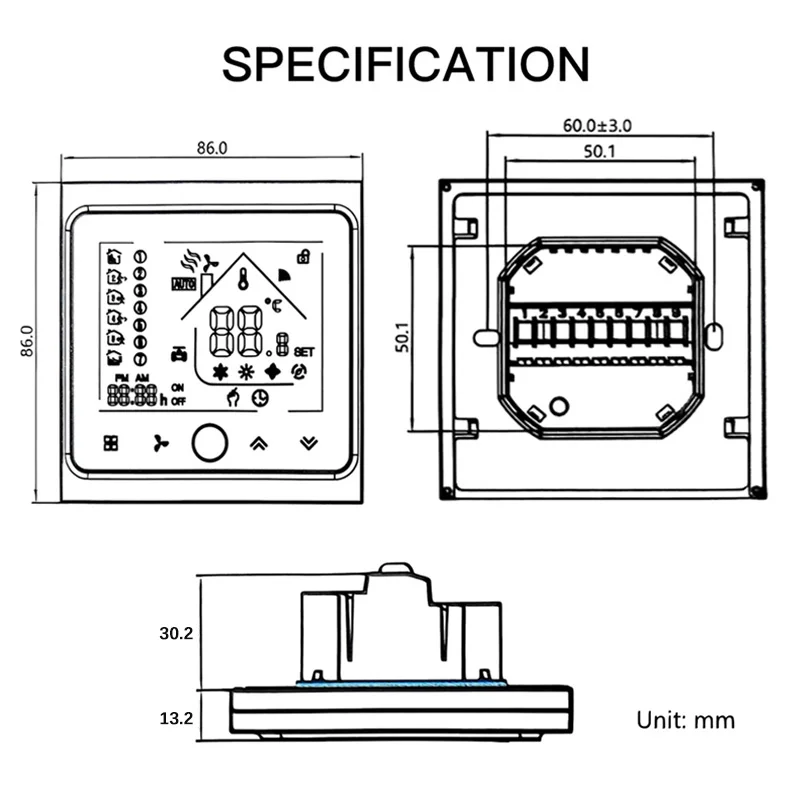

Installation Box: 86*86mm Square or European 60mm Round Box
Wire Terminals: Wire 2×1.5mm² or 1×2.5mm²
Protection Level: IP20
Buttons: Capactive Touch Buttons
Before Wiring And Install:
1x Thermostat + 2x Screw + 1x User Guide + 1x Wall Plate + 1x QC Passed
|
|
|
Black & White Color
Hands-Free Voice Control
Work with Amazon Alexa/Echo or Google Assistant
Control From Anywhere
Turn on your device before you come back home
Soft Led Light Display
When the thermostat is working, the button lights all the time
Advantages
Energy Saving: Low consumption and energy saving. Help you save money
Language: All setting languages hynchronize your time zone, address and language
Kid Lock: Kids lock function avoid kids mis-operate the thermostat
Precision: 0.5 ℃ Accuracy keeps temperature within the level you set.
Memory: Data memory when power is off.
Weekly Programmable
6 period per day
you can program the thermostat and let it work automatically
Selling Point Display
|
|
|
Wiring
|
|
|
|
Installation
Suitable for a standard 86mm box or European 60mm battress box

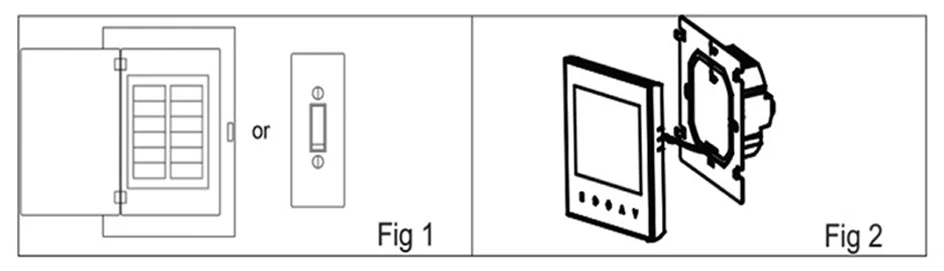

Step1. Keep the electricity off
Step 2. Remove the mouting plate by rotating the LCD part

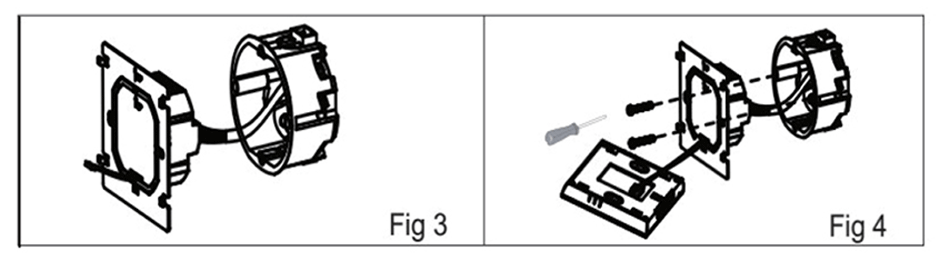

Step 3. Connect power supply, load into the appropriate terminals
Step 4. Fix the mounting plate into the wall with screws in the box

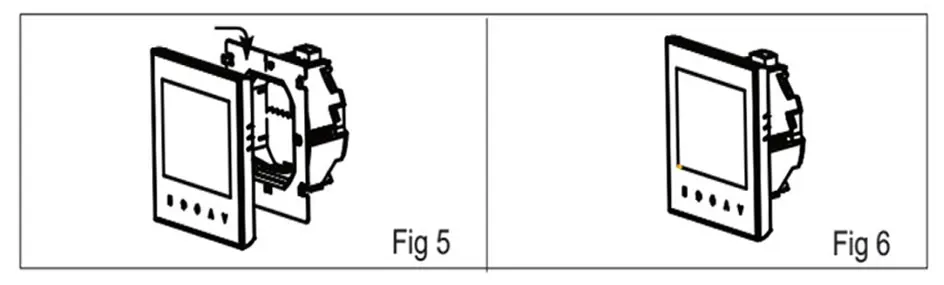

Step 5. Fasten body of the thermostat and the mounting place
Step 6. Installation finished
